INTERNAL THREADED SOCKETS A4 STAINLESS STEEL

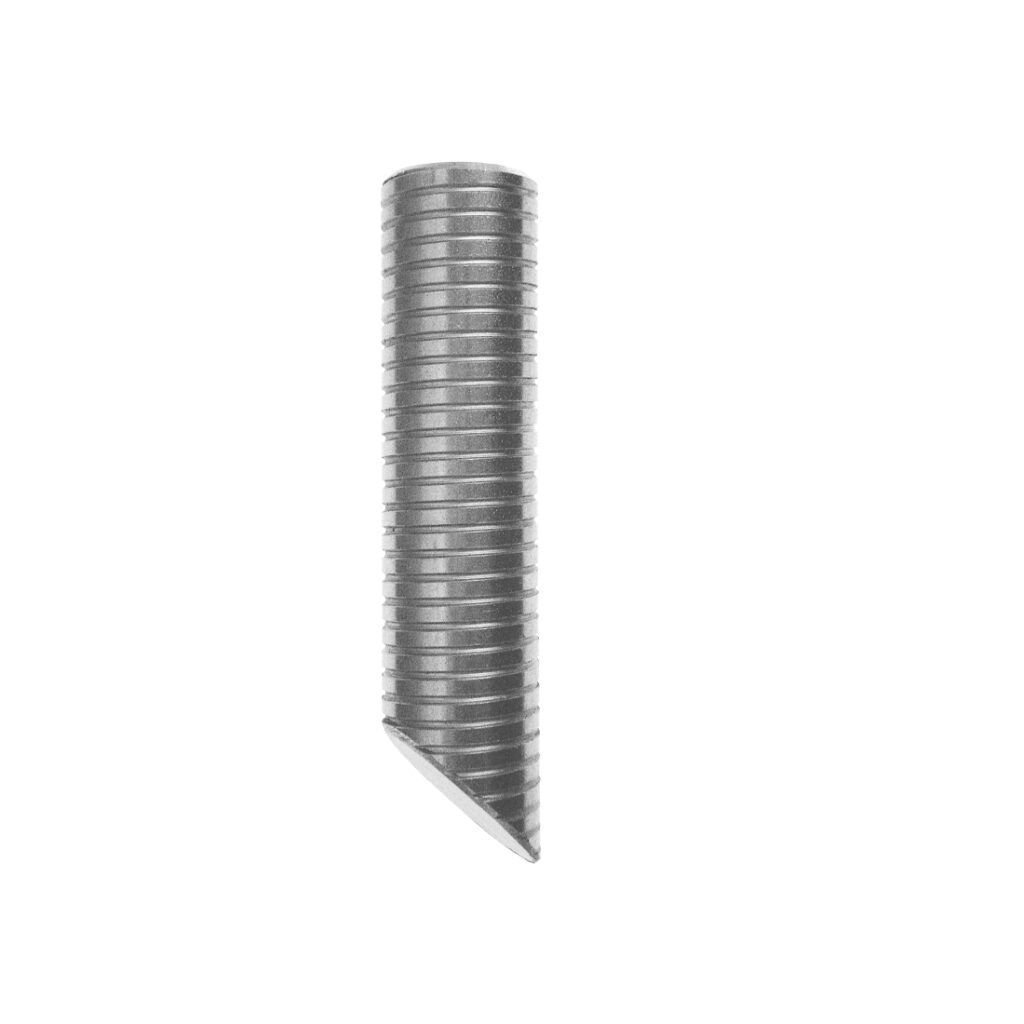

An A4 stainless steel permanent threaded socket for use with glass capsules or the J-Fix injection resin systems.

Material: A4-316 Stainless Steel

Provides A Flush Fixing

Suitable For External use And Marine Environments

Expansion Free

High Loads

Permanent Threaded Socket

Allows Removal of Bolt to Leave a Re-Usable Socket

Data Sheet

Approvals

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Data Sheet

Part Number	Internal Threaded Diameter mm	Internal Threaded Length (L_th) mm	Outside Diameter mm	Hole Diameter mm	Anchor Length (L_H) mm	Min Hole Depth (h₁) mm
ITSM08SSA4	8	8	12	14	90	90
ITSM10SSA4	10	10	16	18	90	90
ITSM12SSA4	12	12	20	22	90	90
ITSM16SSA4	16	16	24	28	125	125

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert Spin In Capsule with air bubble nearest to surface of concrete.

Attach setting tool to socket and spin in with drilling machine using rotary hammer action flush with surface.

Allow resin to cure, attach fixture, insert bolt and tighten to Recommended Torque.
