J-Fix pure vinylester high strength resin suitable for use in concrete, brickwork and most natural stone. it can be used in dry, damp and flooded holes.

ETA Option 1 Approved
100 Years Working Life
ETA For Masonry
Styrene Free
Dry/Wet/Flooded Holes
Expansion Free
Close Spacing and Edge Distance


ETA accreditation
CE accreditation
WRAS accreditation

Product Information

Concrete C20/25 To C50/60
Cracked/Non-Cracked Concrete
Dry/Wet/Flooded Holes
Solid Brickwork
Concrete Block
Natural Stone

  • Racking Systems
  • Safety Barriers
  • Formwork Support Systems
  • Structural Steelwork
  • Masonry Support
  • Bolting Machinery
  • Juliet Balconies

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website


Range Data

Part Number
Volume ml

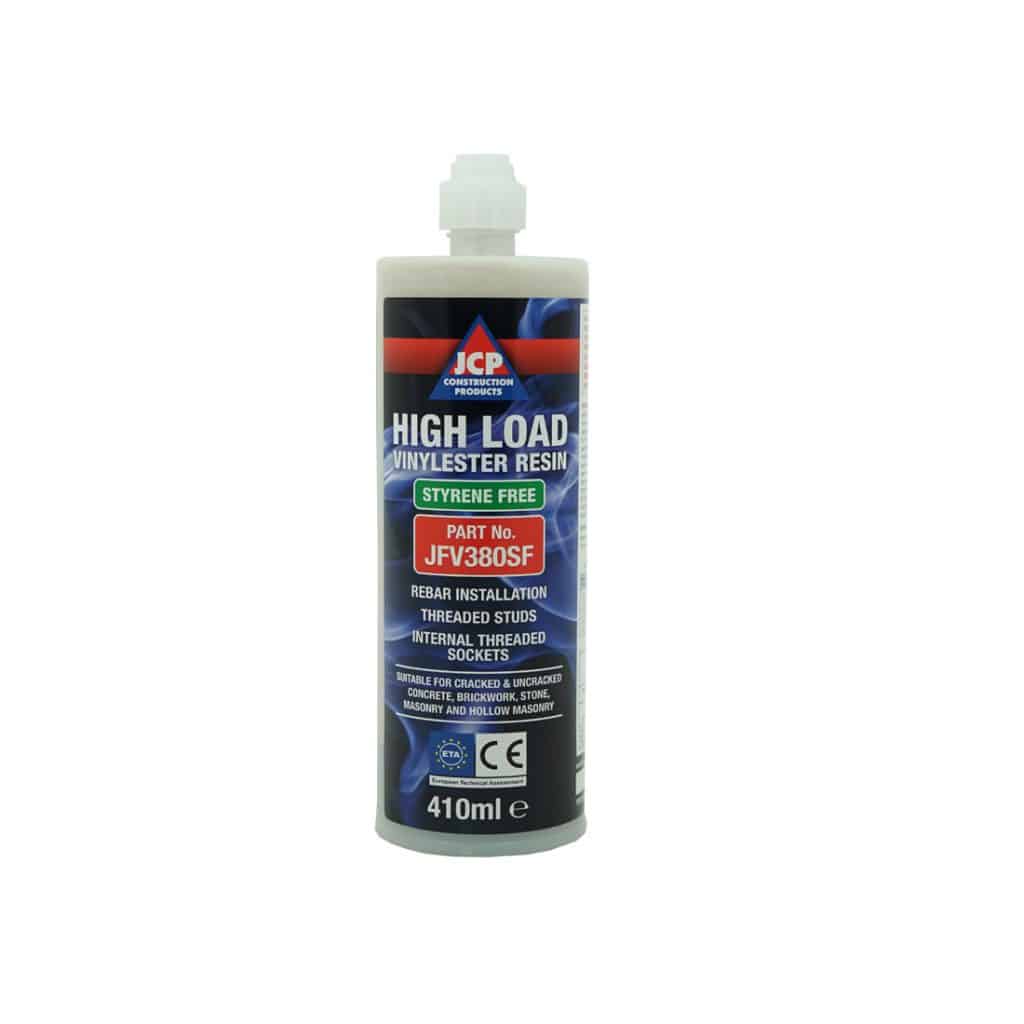

JFV380SF 410 Vinylester High Load Resin in Cartridge + 1 Mixer Nozzle

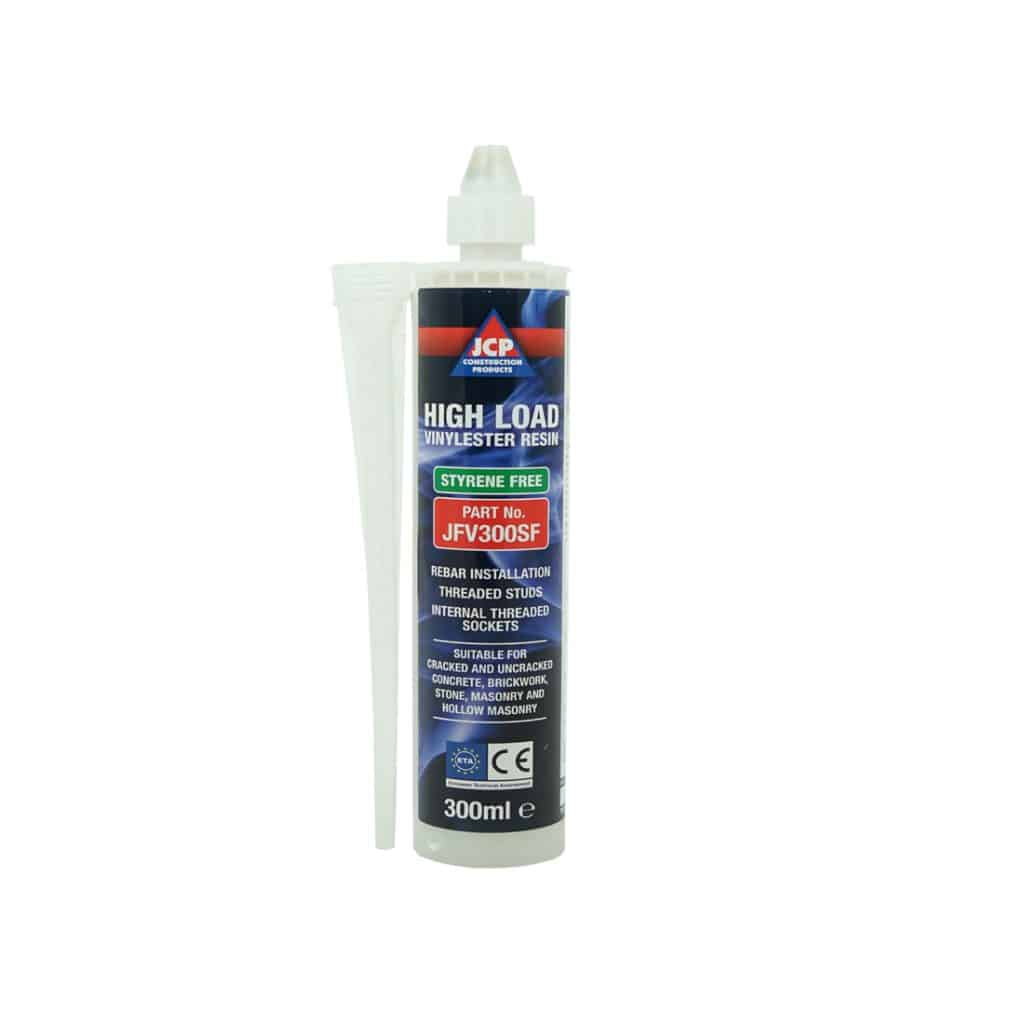

JFV300SF 300 Vinylester High Load Resin in Cartridge + 1 Mixer Nozzle

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by brushing, blowing to remove drilling debris and dust:
2×Blowing 2×Brushing 2×Blowing 2×Brushing 2×Blowing.

Attach nozzle to cartridge.
Extrude first part to waste until an even colour is achieved.
Fill hole 1/3 to 1/2 full starting from the bottom of the hole.

Insert stud into base material by hand using a twisting motion.

Allow resin to cure.
Attach fixture.
Tighten with torque wrench to recommended torque.
