ETA OPTION 1 HEXAGON HEAD ANKERBOLTS BZP

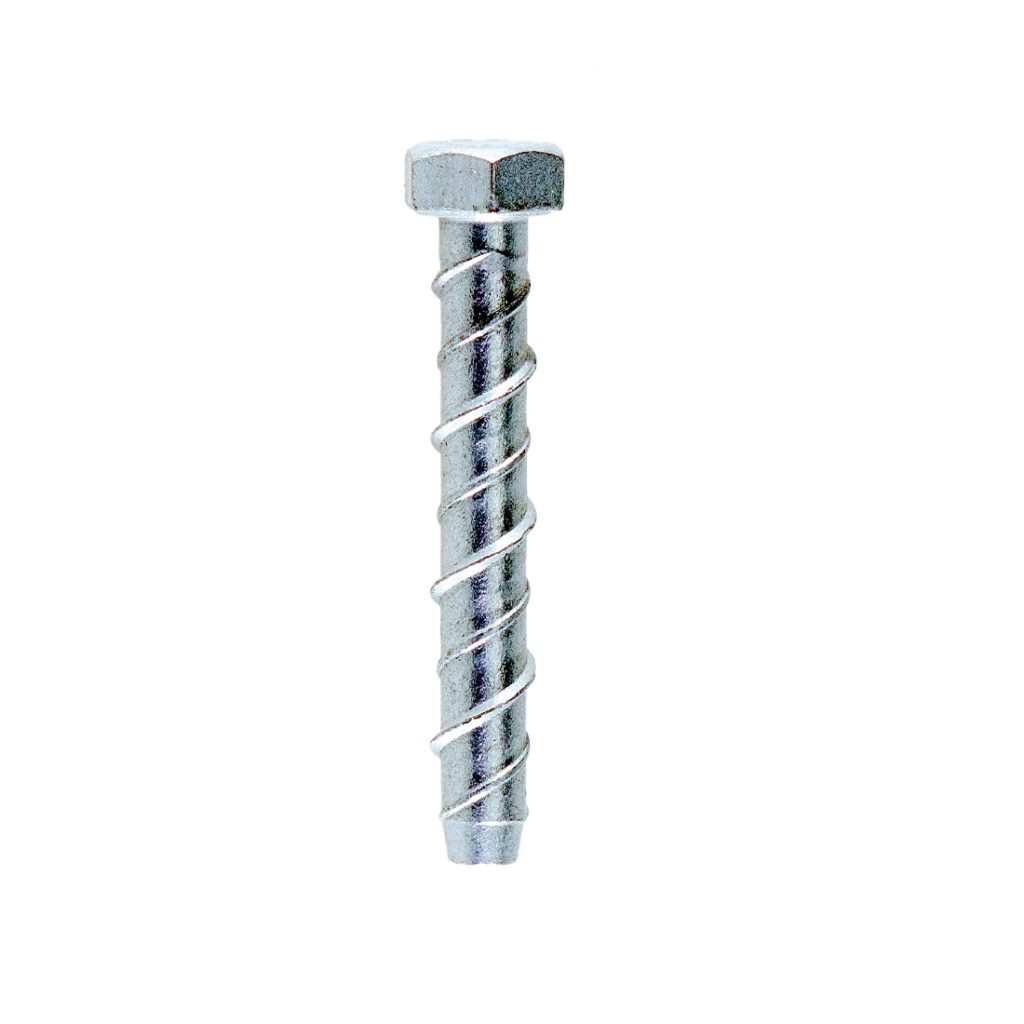

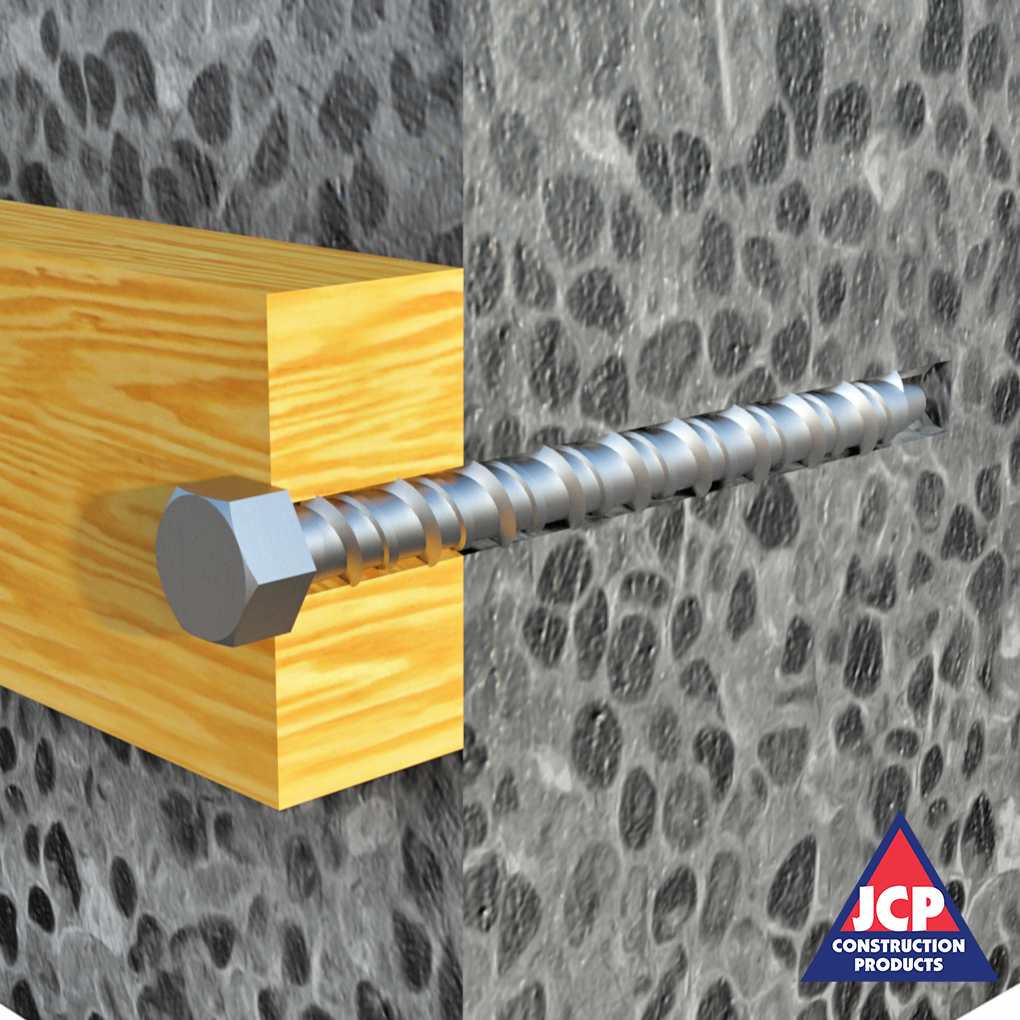

A hexagon head self tapping screw that cuts its own thread in the base material. The anchor has a European Technical Assessment for use in cracked and non-cracked concrete for structural applications (ETA Option1).

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Expansion Free
Undercutting Action
Through Fixing
High Performance
Fire Resistant Loading
Zinc Plated Minimum 5┬Ám
Reaction To Fire Class A1

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Width Across Flats (A/F) mm
Tightening Torque (Tinst) Nm
JAB08/10075ETA 8 10 80 12 5 90 75 120 15 40
JAB08/10100ETA 8 10 100 12 25 90 75 120 15 40
JAB08/10130ETA 8 10 130 12 55 90 75 120 15 40
JAB08/10150ETA 8 10 150 12 75 90 75 120 15 40
JAB10/12100ETA 10 12 100 14 15 100 85 125 17 60
JAB10/12130ETA 10 12 130 14 45 100 85 125 17 60
JAB10/12150ETA 10 12 150 14 65 100 85 125 17 60
JAB12/14100ETA 12 14 100 16 5 110 95 140 19 80
JAB12/14130ETA 12 14 130 16 35 110 95 140 19 80
JAB12/14150ETA 12 14 150 16 55 110 95 140 19 80
JAB12/14200ETA 12 14 200 16 105 110 95 140 19 80
JAB14/16130ETA 14 16 130 18 20 130 110 170 24 90
JAB14/16150ETA 14 16 150 18 50 130 110 170 24 90
JAB14/16200ETA 14 16 200 18 90 130 110 170 24 90
JAB16/18150ETA 16 18 150 20 30 145 120 190 27 100
JAB16/18200ETA 16 18 200 20 80 145 120 190 27 100

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench.

Tighten with torque wrench to recommended torque.

>
