ETA DUAL THREADED SOCKET BOLTS

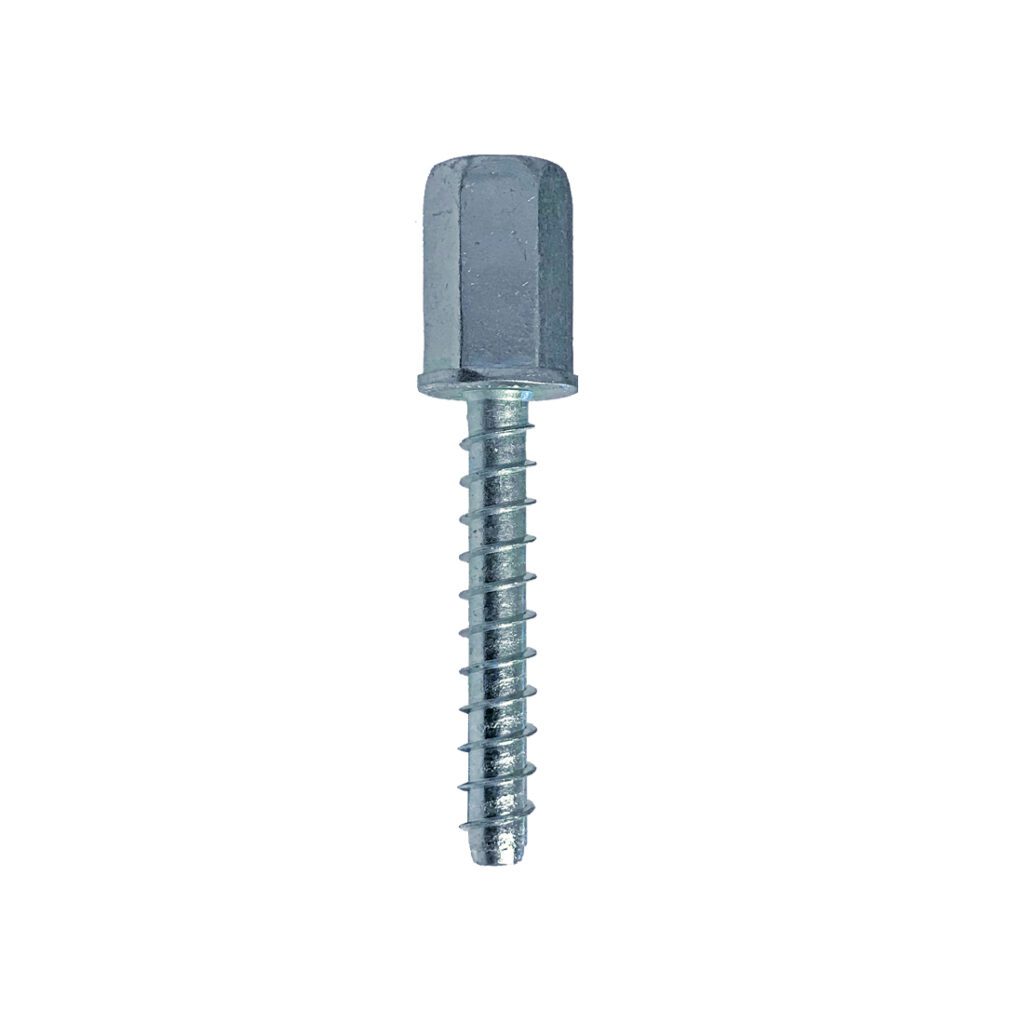

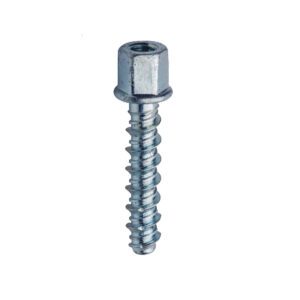

A fire-rated ETA-approved self-tapping socket anchor which cuts its own thread in concrete. Suitable for multiple use for non-structural applications in cracked or non-cracked concrete.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Undercutting Action
Fast and Secure Installation
Expansion Free
Zinc Plated Minimum 5┬Ám (For Dry, Internal Applications Only)
Fire Resistant Classification R120
ETAG 001-6

Approvals

ETA accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-cracked Concrete (Only for Multiple Use for Non-structural Applications)
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Suspending threaded rods and screws for M & E applications.

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Drill Hole Diameter (d0) mm
Hole Depth
Overall Length mm
Embedment Depth (hnom) mm
Minimum Concrete Thickness mm (hcmin)
M8 Internal Thread Length (lTh) mm
M10 Internal Thread Length (lTh) mm
Across Flats (A/F) mm
Design Tensile Resistance (NRd) kN
Recommended Tensile Resistance (NRa) kN
Tightening Torque (Tinst) Nm
Description
JAB06/08SOCETA - Solid Concrete 6 65 85 55 100 9 12 13 3.3 2.3 20
JAB06/08SOCETA - Hollow Concrete Planks 6 65 85 55 N/A 9 12 13 3.3 2.3 20 Not included in ETA

Installation Instructions

Drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor into concrete using suitable impact wrench (maximum machine power setting is limited to 80Nm).

Tighten with torque wrench to recommended torque.

>
