ETA OPTION 1 HEXAGON BOLT HEAVY DUTY ANCHORS A4 STAINLESS STEEL

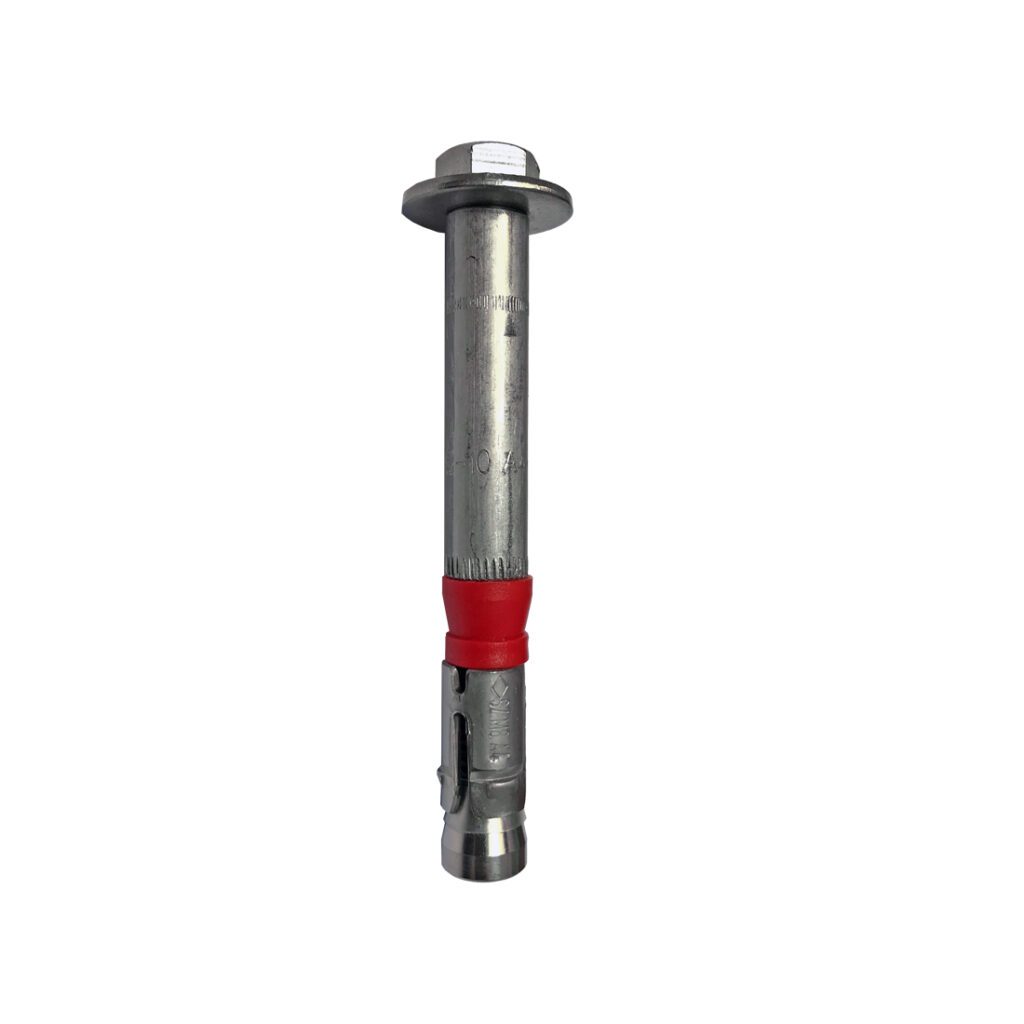

A high-performance anchor with a three-part expansion sleeve allowing for smaller spacings and edge distances. The plastic compression ring ensures the clamping of the mounted piece to the work surface. The C1 and C2 seismic performances are available. A torque-controlled heavy-duty, stainless steel, hexagon bolt anchor suitable for use in cracked and non-cracked concrete over C20/25.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Three Way Expansion Sleeve
High-Performance
Through Fixing
Fire Resistant Loading
Stainless Steel A4-316
Wide Range of Sizes
Suitable For External Use and Marine Environments

Data SheetData Sheet

Approvals

CE accreditation
FR accreditation
SEISMIC accreditation
ETA Option 1 accreditation
Pro Suite accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Certificate of ConformityCertificate of Conformity

Declaration of PerformanceDeclaration of Performance

Range Data

Part Number
Size of Thread
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Max Fixture Thickness (tfix) mm
Total Length (L) mm
JHD0810SS M8 12 80 10 85
JHD0830SS M8 12 80 30 105
JHD0850SS M8 12 80 50 125
JHD1015SS M10 15 95 15 106
JHD1025SS M10 15 95 25 116
JHD1045SS M10 15 95 45 136
JHD1210SS M12 18 105 10 117
JHD1225SS M12 18 105 20 127
JHD1240SS M12 18 105 40 147

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
