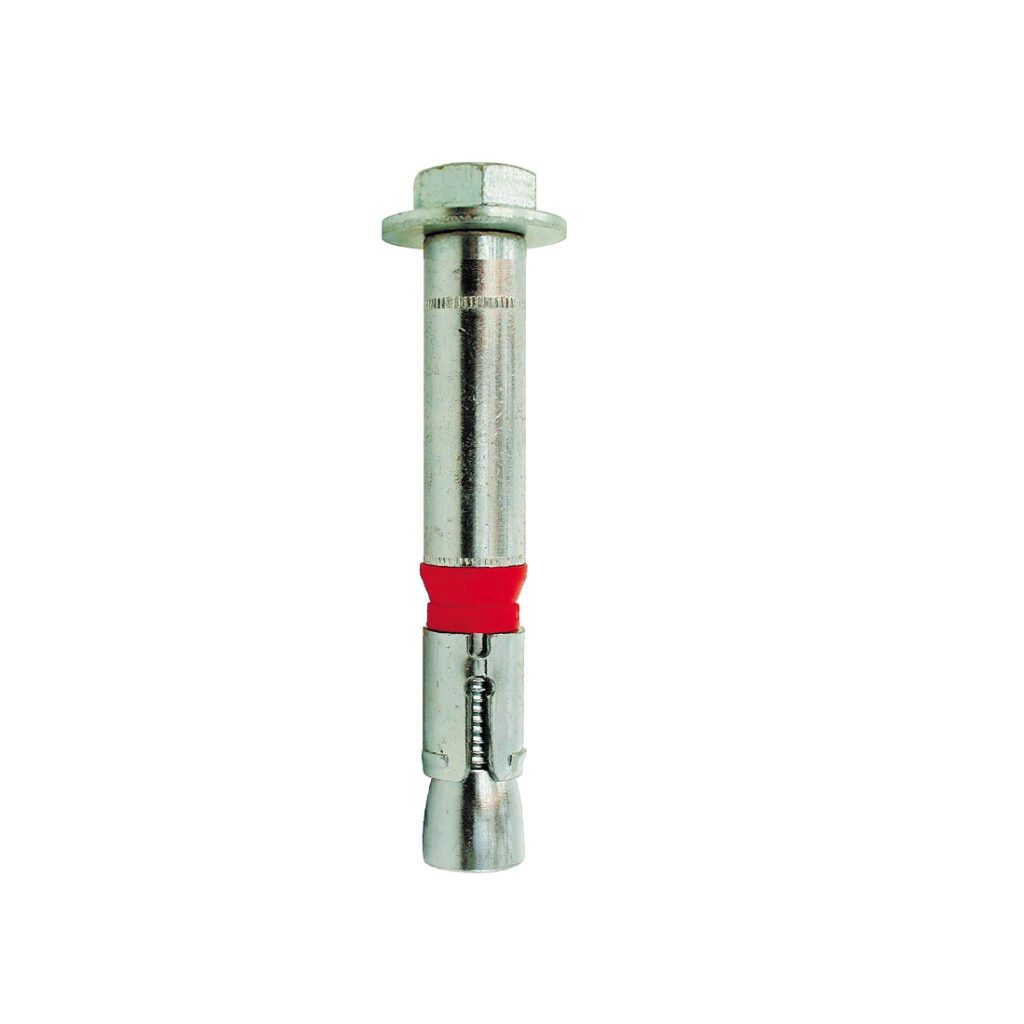

ETA OPTION 1 HEXAGON BOLT HEAVY DUTY ANCHORS BZP

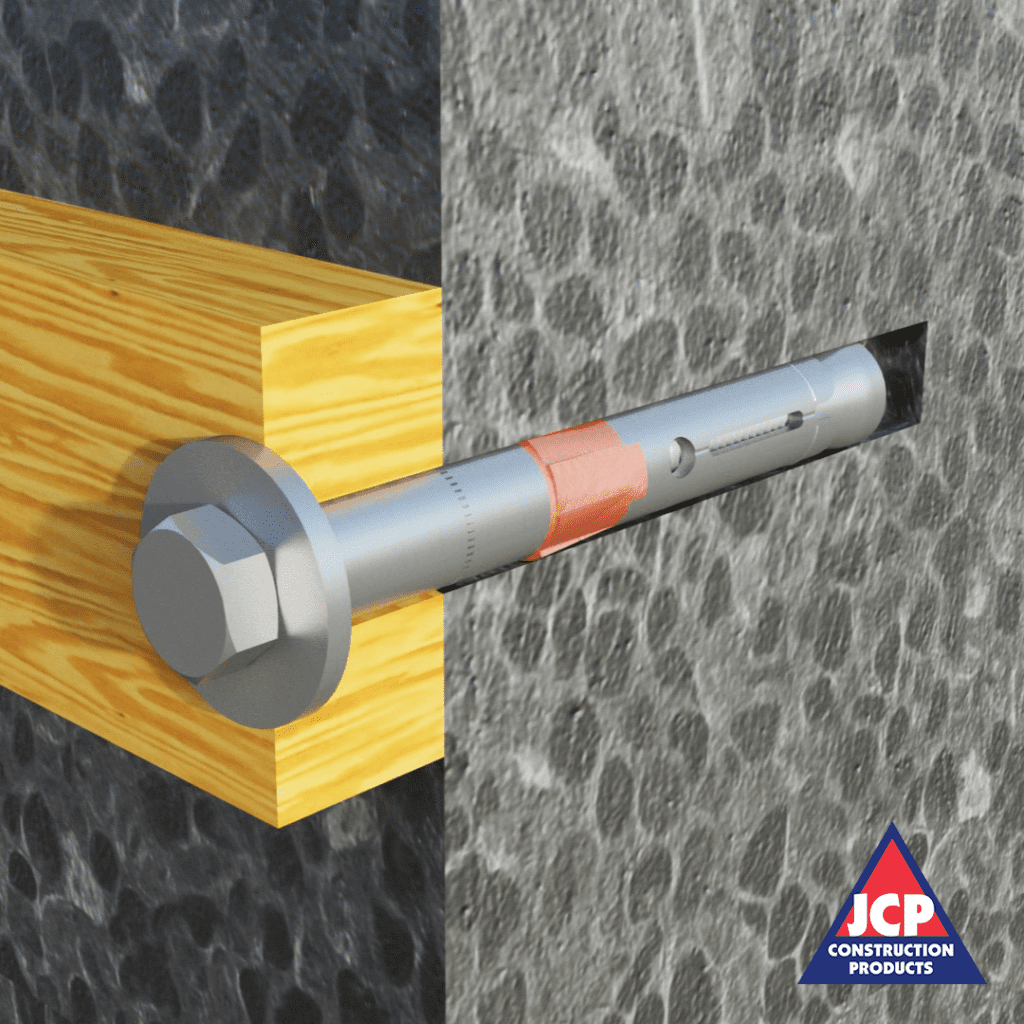

A high-performance heavy-duty torque-controlled anchor with a three part expansion sleeve allowing for smaller spacings and edge distances. The plastic compression ring ensures the clamping of the mounted piece to the work surface. The C1 and C2 Seismic performances are available.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
High-Performance
Three Way Expansion Sleeve
Through Fixing
Fire Resistant Loading
Wide Range of Sizes
Zinc Plated Minimum 5┬Ám

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer and Screw Thickness (tw+s)
Total Length (L) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
JHD0610 M6 100 10 65 12 10 50 10 6.8 75 10 18 15
JHD0630 M6 100 10 65 12 10 50 30 6.8 95 10 18 15
JHD0650 M6 100 10 65 12 10 50 50 6.8 115 10 18 15
JHD0810 M8 120 12 80 14 11 60 10 8.8 85 13 20 30
JHD0830 M8 120 12 80 14 11 60 30 8.8 105 13 20 30
JHD0850 M8 120 12 80 14 11 60 50 8.8 125 13 20 30
JHD1015 M10 140 15 95 17 14 71 15 10.9 106 17 25 50
JHD1025 M10 140 15 95 17 14 71 25 10.9 116 17 25 50
JHD1045 M10 140 15 95 17 14 71 45 10.9 136 17 25 50
JHD1210 M12 160 18 105 20 16 80 10 13.8 117 19 30 80
JHD1220 M12 160 18 105 20 16 80 20 13.8 127 19 30 80
JHD1240 M12 160 18 105 20 16 80 40 13.8 147 19 30 80
JHD1270 M12 160 18 105 20 16 80 70 13.8 177 19 30 80
JHD1610 M16 200 24 130 26 22 100 10 18.8 130 24 40 160
JHD1620 M16 200 24 130 26 22 100 20 18.8 150 24 40 160
JHD1650 M16 200 24 130 26 22 100 50 18.8 180 24 40 160
JHD2030 M20 250 28 160 31 26 125 30 21.8 192 30 50 280
JHD2060 M20 250 28 160 31 26 125 60 21.8 222 30 50 280
JHD2460 M24 300 32 180 35 32 150 60 26.5 262 36 60 280

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
