COUNTERSUNK HEAD SLEEVE ANCHORS ZYP

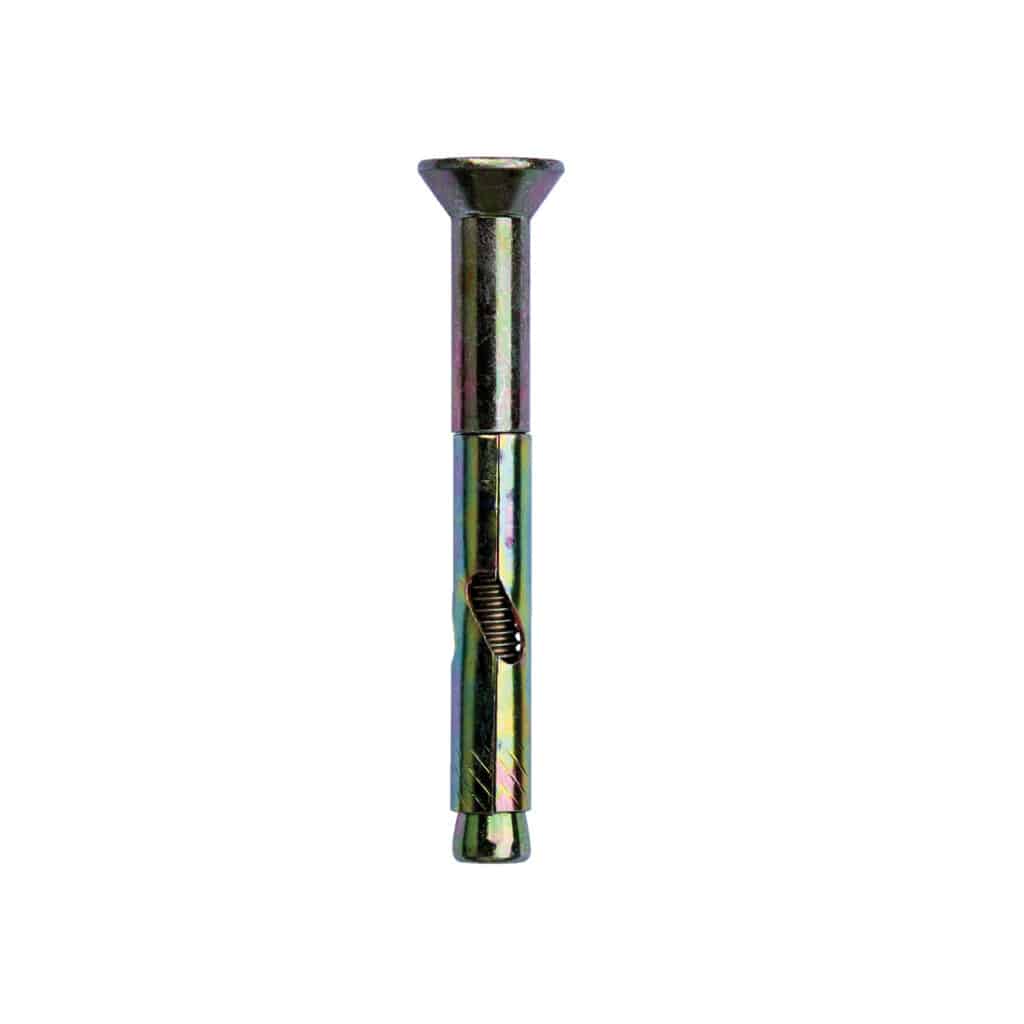

The countersunk sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. The oval hole enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Through Fixing
Torque Controlled Expansion
Supplied Pre-Assembled For Rapid Installation
Countersunk Head Gives a Flush Fixture

Data SheetData Sheet

Approvals

Pro Suite accreditation

Product Information

Concrete
Stone
Brickwork
Perforated Bricks
Dense Concrete Blocks

  • Plates
  • Hand Rails
  • Racking
  • Stadium Seating
  • Signs

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Outside / Drill Diameter (d0) mm
Anchor Length (LH) mm
Head Diameter mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Head Drive Phillips
Min. Structure Thickness (h) mm
Installation Torque (Tinst) Nm
SLC08060 8 60 14 30 10 35 40 No3 100 10
SLC08085 8 85 14 50 10 35 40 No3 100 10
SLC10075 10 75 16 40 12 40 45 No3 100 20
SLC10100 10 100 16 60 12 40 45 No3 100 20

Installation Instructions

Position fixture and drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Tighten to recommended torque.

>
