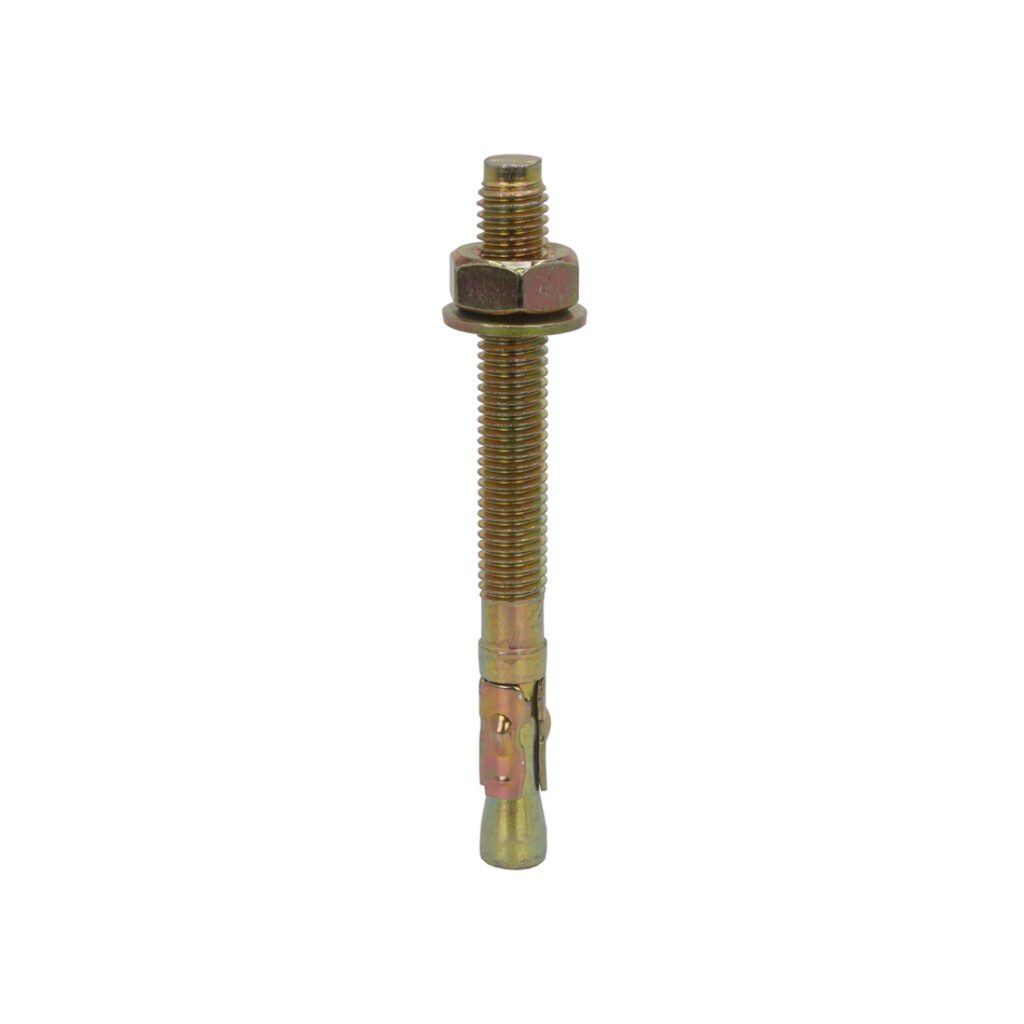

THROUGHBOLTS ZYP

The throughbolt is the ultimate “through fixing” with the hole diameter as the bolt diameter. It is ideal for bolting in place awkward fixtures without the need for marking out, removing and repositioning. It is a torque-controlled anchor suitable for use in concrete over C20/25 strength.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Fast and Secure Installation
Three way Expansion Sleeve
Reaction to Fire Class A1
Through Fixing
Zinc Plated Minimum 5µm
Wide Range of Sizes

Data SheetData Sheet

Approvals

Pro Suite accreditation

Product Information

Concrete C20/25 To C50/60
Non-Cracked Concrete

  • Metal Structures
  • Brackets
  • Machines
  • Racking
  • Railings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer Nut Thickness (tw+n) mm
Total Length (L) mm
Thread Length (Lth) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
TB06045 M6 100 6 35 7 7 23 5 5 45 20 10 12.5 6
TB06055 M6 100 6 35 7 7 23 15 5 55 30 10 12.5 6
TB06085 M6 100 6 35 7 7 23 45 5 85 60 10 12.5 6
TB08050 M8 100 8 45 9 8 28 5 8 50 20 13 17 10
TB08065 M8 100 8 45 9 8 28 20 8 65 35 13 17 10
TB08080 M8 100 8 45 9 8 28 35 8 80 50 13 17 10
TB08100 M8 100 8 45 9 8 28 55 8 100 70 13 17 10
TB08130 M8 100 8 45 9 8 28 85 8 130 85 13 17 10
TB10065 M10 125 10 50 12 9 37 8 10 65 25 17 21 28
TB10075 M10 125 10 50 12 9 37 18 10 75 35 17 21 28
TB10090 M10 125 10 50 12 9 37 33 10 90 50 17 21 28
TB10100 M10 125 10 50 12 9 37 43 10 100 50 17 21 28
TB10120 M10 125 10 50 12 9 37 63 10 120 80 17 21 28
TB10150 M10 125 10 50 12 9 37 93 10 150 80 17 21 28
TB10175 M10 125 10 50 12 9 37 118 10 175 80 17 21 28
TB12080 M12 170 12 65 14 13 50 5 13 80 30 19 24 34
TB12100 M12 170 12 65 14 13 50 25 13 100 50 19 24 34
TB12120 M12 170 12 65 14 13 50 45 13 120 70 19 24 34
TB12140 M12 170 12 65 14 13 50 65 13 140 90 19 24 34
TB12180 M12 170 12 65 14 13 50 105 13 180 90 19 24 34
TB16105 M16 200 16 85 18 15 63 10 16 105 60 24 30 85
TB16125 M16 200 16 85 18 15 63 30 16 125 65 24 30 85
TB16150 M16 200 16 85 18 15 63 55 16 150 90 24 30 85
TB16175 M16 200 16 85 18 15 63 80 16 175 90 24 30 85
TB16220 M16 200 16 85 18 15 63 125 16 220 90 24 30 85
TB20130 M20 240 20 100 22 16 71 20 19 130 60 30 37 160
TB20160 M20 240 20 100 22 16 71 50 19 160 60 30 37 160
TB20215 M20 240 20 100 22 16 71 105 19 215 60 30 37 160
TB24180 M24 300 24 120 26 20 87 45 23 180 65 36 44 280
TB24260 M24 300 24 120 26 20 87 125 23 260 65 36 44 280

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
