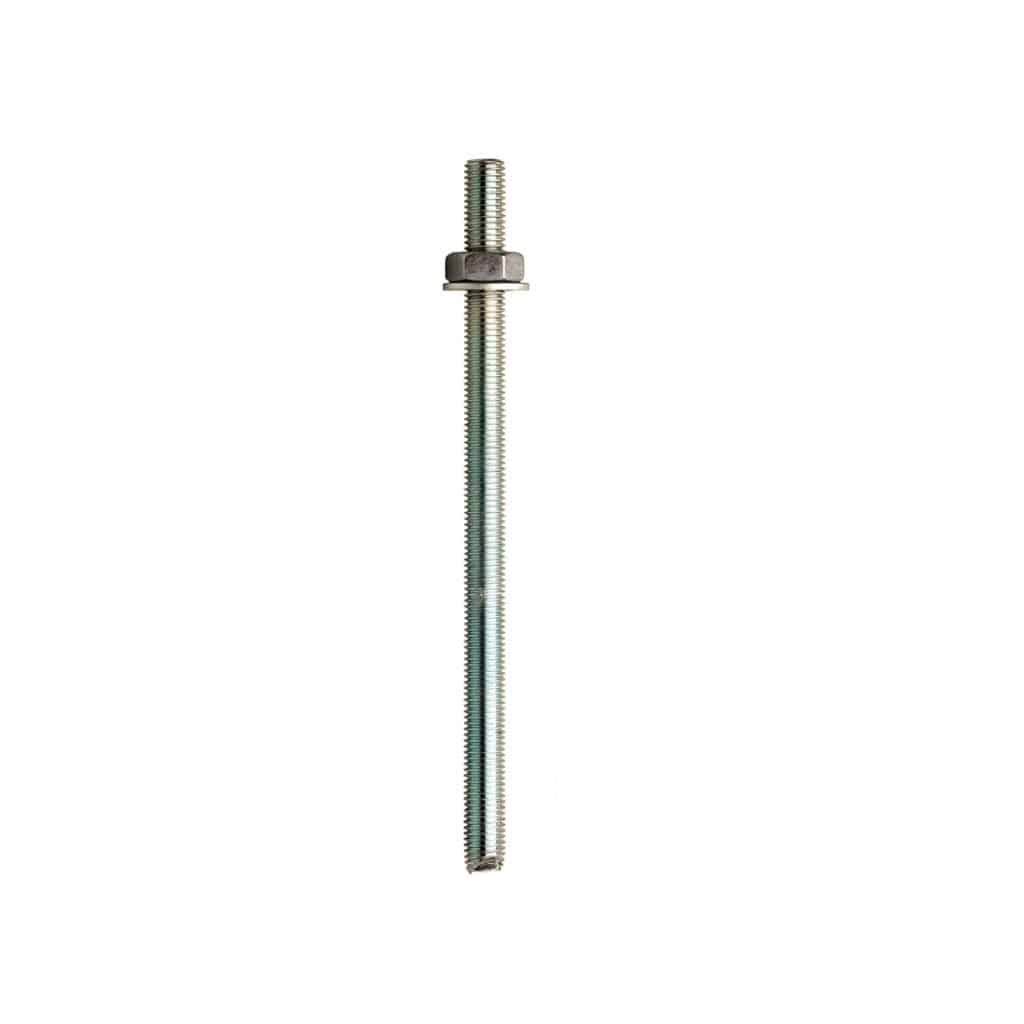

J-FIX STUDS PLAIN ENDED BZP

J-Fix studs plain ended BZP to 5 microns for use with J-Fix injection resin systems.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Plain Ended
Grade 5.8 Threaded Stud
Minimum 5µm

Data SheetData Sheet

Approvals

Pro Suite accreditation

Product Information

  • Chemical Anchoring Systems

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
JSTUD08150PE 8 150 62 80
JSTUD10105PE 10 105 5 90
JSTUD10150PE 10 150 50 90
JSTUD10200PE 10 200 100 90
JSTUD12110PE 12 110 - -
JSTUD12150PE 12 150 27 110
JSTUD12200PE 12 200 77 110
JSTUD16110PE 16 110 - -
JSTUD16250PE 16 250 104 128
JSTUD16350PE 16 350 204 128
JSTUD20200PE 20 200 9 170
JSTUD20400PE 20 400 209 170
>
