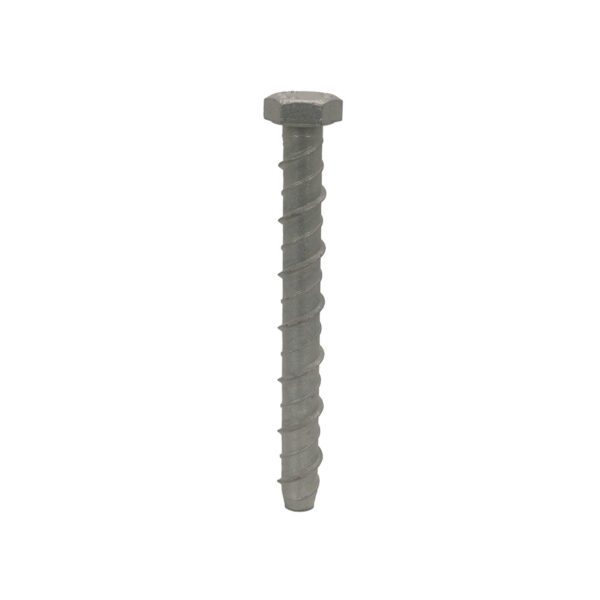

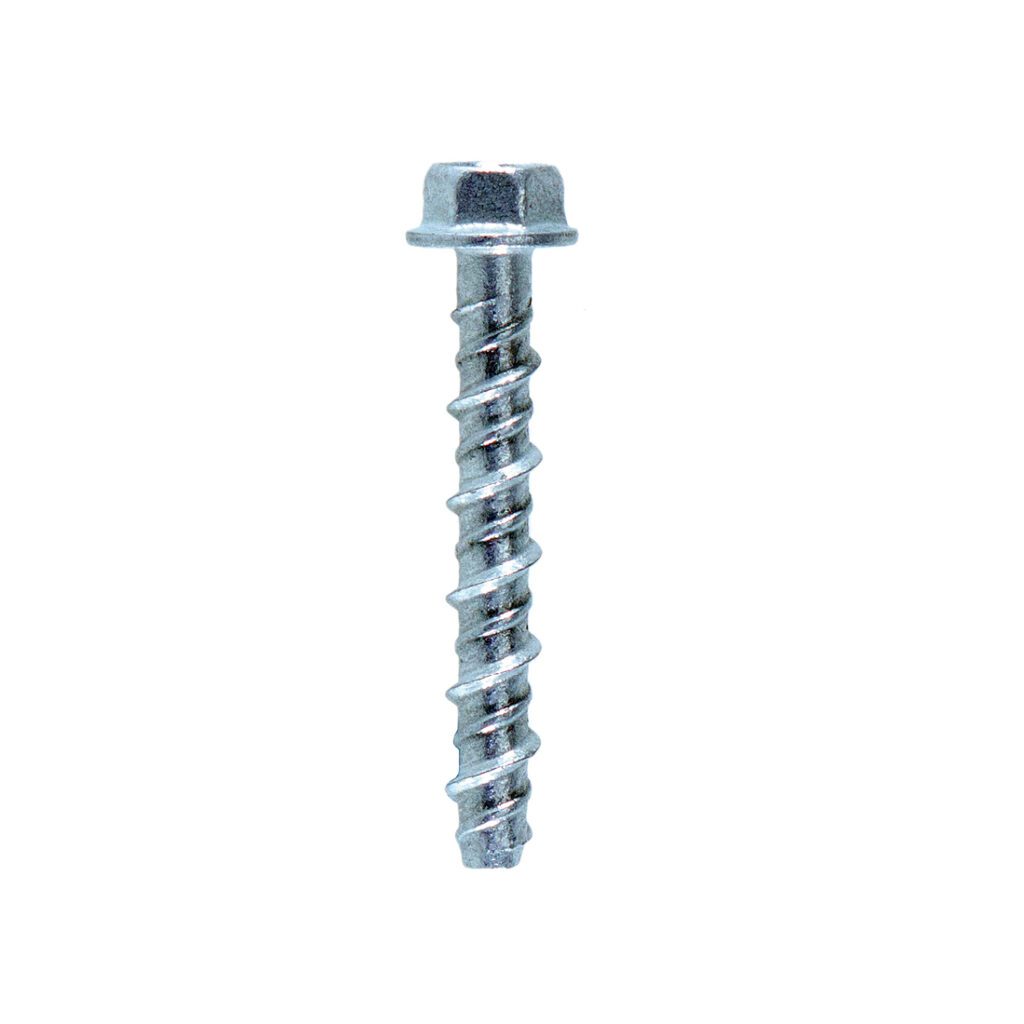

HEXAGON FLANGE HEAD ANKERBOLTS GALV

A hexagon flange head self-tapping anchor that can be used in a variety of base materials including concrete, stone, brick and block. Galvanised finish to give greater corrosion resistance.

Finish: Mechanical Galvanised
Material: Steel

Fast and Secure Installation

Expansion Free

Undercutting Action

Through Fixing

High Performance

Mechanical Galvanised Minimum 40µm

Data Sheet

Product Information

Concrete C20/25 To C50/60

Non-Cracked Concrete

Hollow Concrete Planks

Solid Brickwork

Concrete Block

Natural Stone

Railings and Handrails
Wooden Beams
Brackets
Pipeline and Cable Routes
Suspended Ceilings
Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

Range Data
Installation Instructions

Shallow Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L_H) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Width Across Flats (A/F) mm	Tightening Torque (T_inst) Nm
JAB06/08050G	6	8	50	10	20	40	30	100	10	25
JAB06/08075G	6	8	75	10	45	40	30	100	10	25
JAB06/08100G	6	8	100	10	70	40	30	100	10	25

Deep Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Width Across Flats (A/F) mm	Tightening Torque (T_inst) Nm
JAB06/08050G	6	8	50	10	5	55	45	100	10	25
JAB06/08075G	6	8	75	10	30	55	45	100	10	25
JAB06/08100G	6	8	100	10	55	55	45	100	10	25

Installation Instructions

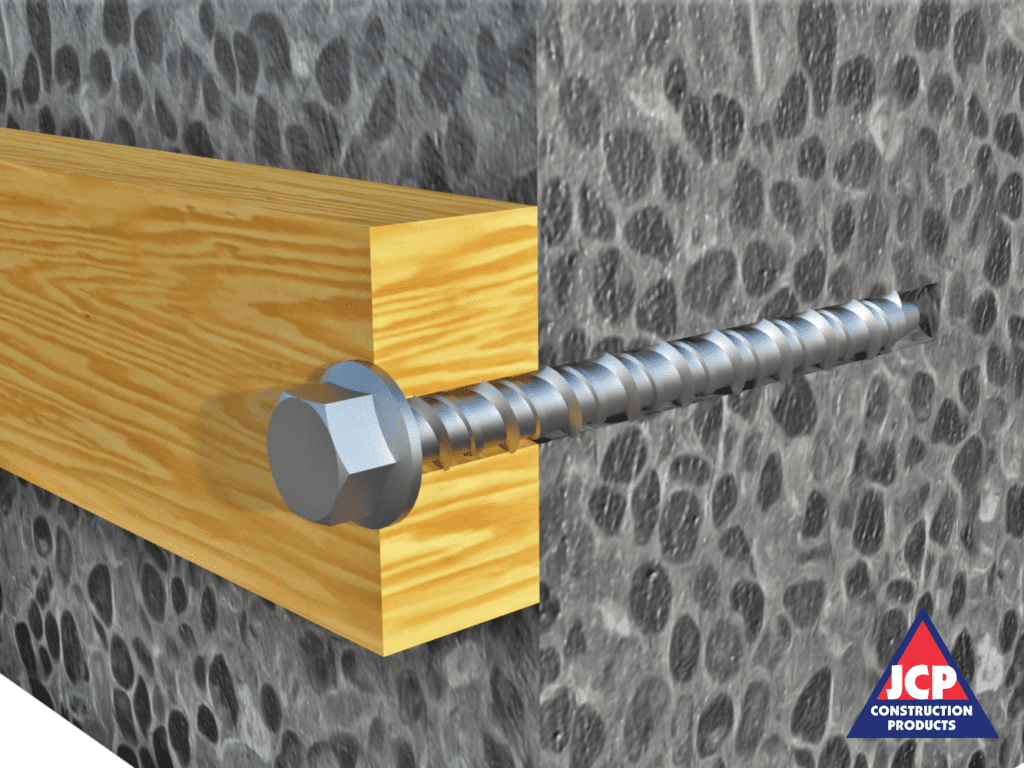

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.
