EYE AND HOOK BOLT SLEEVE ANCHORS ZYP

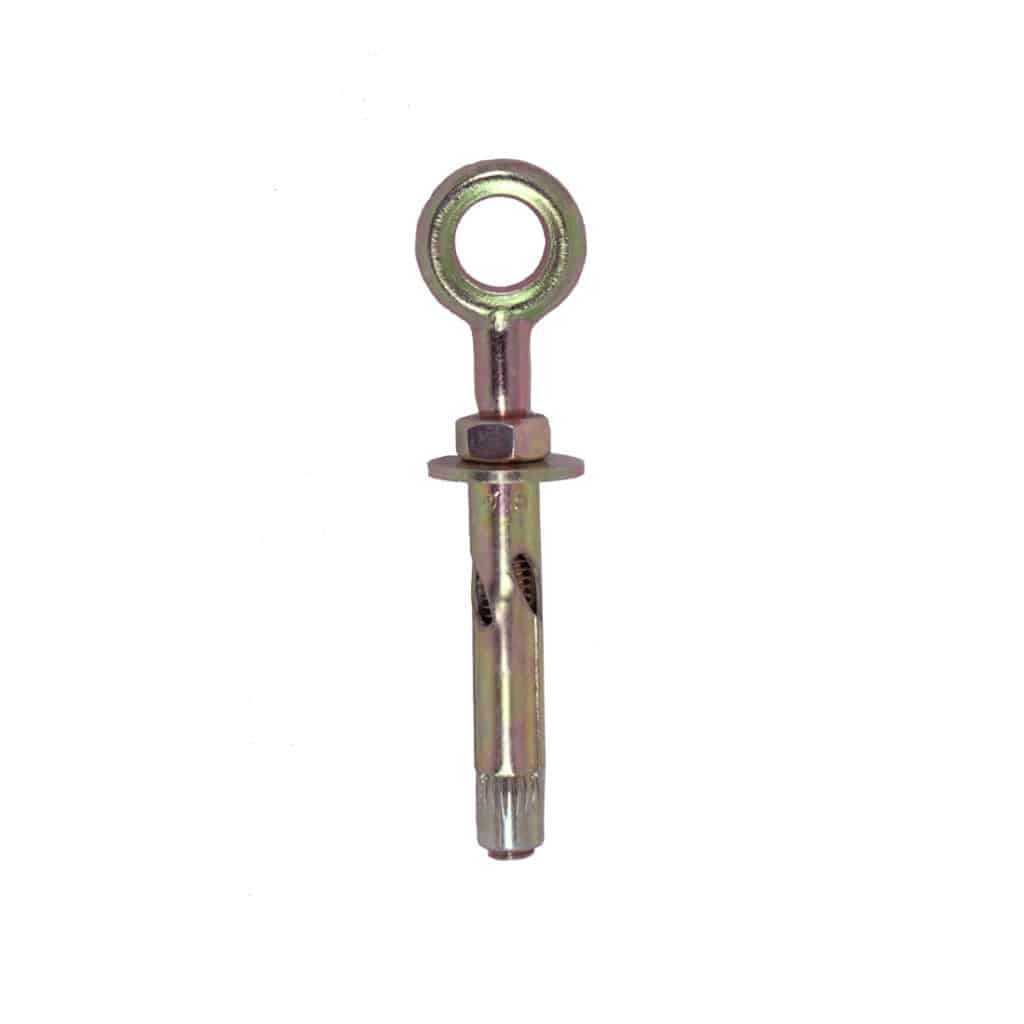

The forged eye bolt and hook bolt sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. The diagonal slot enables the small gaps to be pulled
down and a positive clamping force to be exerted through the fixture.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Through Fixing
Torque Controlled Expansion
Forged Eye for Improved Strength
Supplied Pre-Assembled For Rapid Installation

Data SheetData Sheet

Product Information

Concrete
Stone
Brickwork
Perforated Bricks
Dense Concrete Blocks

  • Attaching wires
  • Bird deterrents
  • Ladder Restraints

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Eye Diameter mm
Min Hole Depth (h1) mm

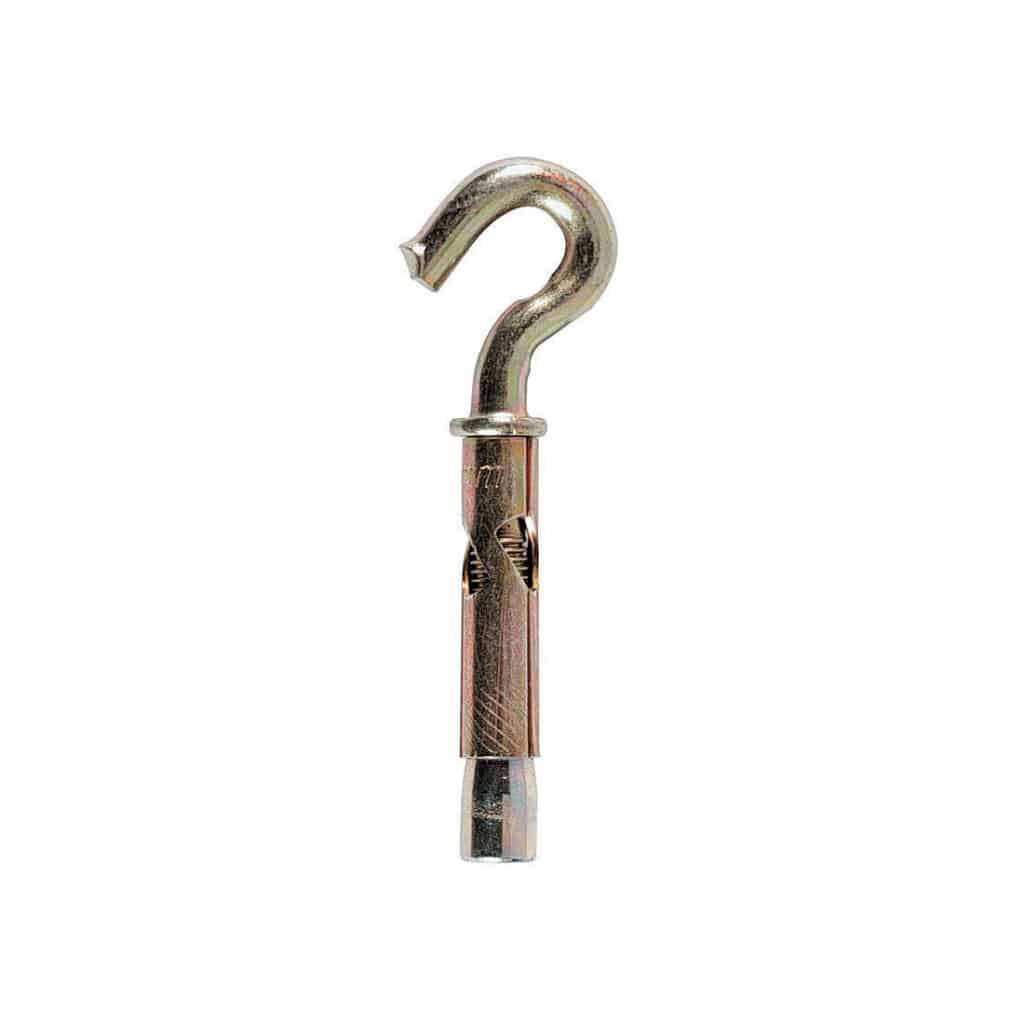

Hookbolt-SLZH08040 8 11 45
Forged Eyebolt - SLZE08040F 8 10 45

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor into concrete by using a suitable hammer.

Tighten with torque wrench to recommended torque.

>
