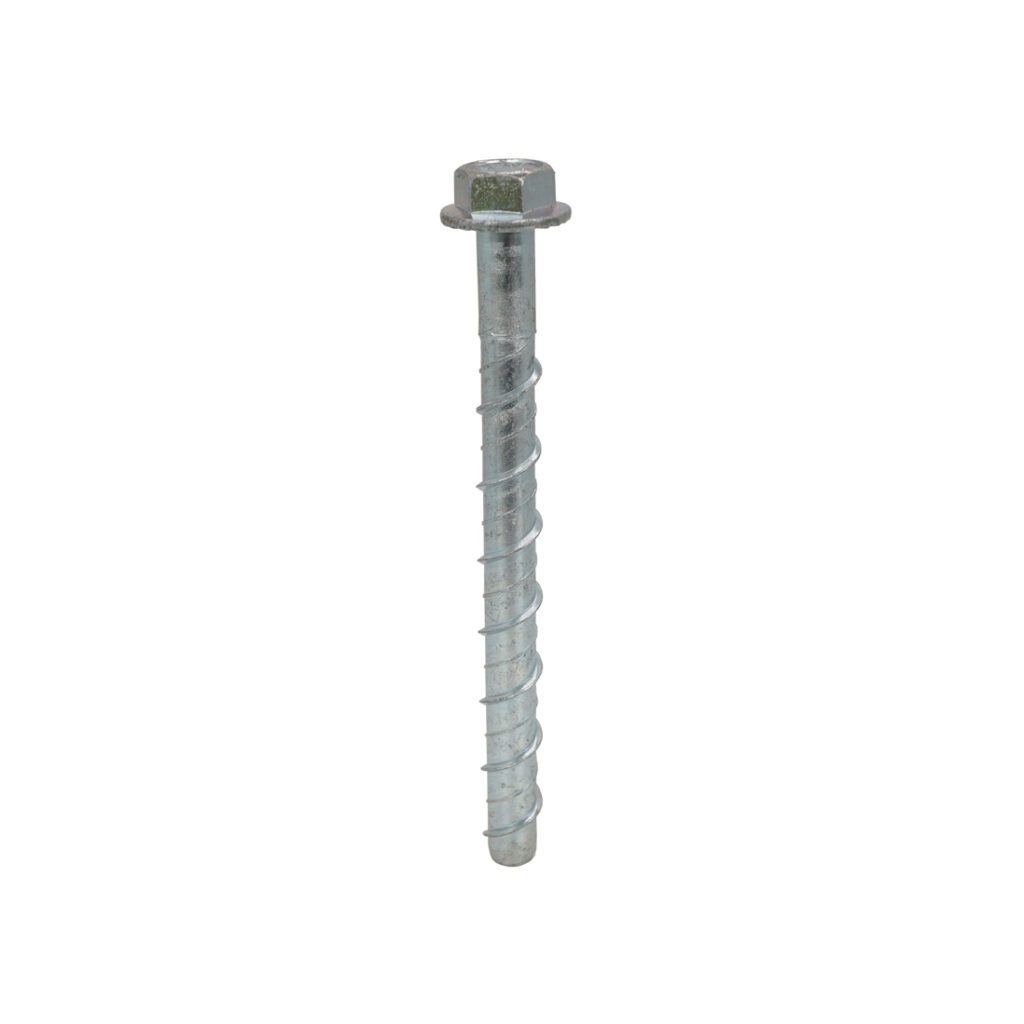

ETA OPTION 1 HEXAGON FLANGE HEAD ANKERBOLTS BZP

A hexagon flange head self tapping screw that cuts its own thread in the base material. The anchor has a European Technical Assessment for use in cracked and non-cracked concrete for structural applications (ETA Option1).

Finish: Bright Zinc Plated (BZP)
Material: Steel

Undercutting Action

Fast and Secure Installation

Expansion Free

Through Fixing

High-Performance

Fire Resistant Loading

Approvals

Product Information

Concrete C20/25 to C50/60

Cracked/Non-Cracked Concrete

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number	Min Hole Depth (h₁) mm	Max Fixture Thickness (t_fix) mm	Width Across Flats (A/F) mm	Anchor Length (L_H) mm	Anchor Hole Size (d₀) mm
JAB06/08050FETA	50	5	10	50	6
JAB06/08075FETA	50	30	10	75	6
JAB06/08100FETA	50	55	10	100	6
JAB06/08130FETA	50	85	10	130	6
JAB08/10060FETA	60	10	13	60	8
JAB08/10080FETA	60	30	13	80	8
JAB08/10100FETA	60	50	13	100	8
JAB08/10130FETA	60	80	13	130	8
JAB08/10150FETA	60	100	13	150	8
JAB10/12060FETA	65	5	15	60	10
JAB10/12075FETA	65	20	15	75	10
JAB10/12100FETA	65	45	15	100	10
JAB10/12130FETA	65	75	15	130	10
JAB10/12150FETA	65	95	15	150	10
JAB12/14075FETA	75	10	16	75	12
JAB12/14100FETA	75	35	16	100	12
JAB12/14130FETA	75	65	16	130	12
JAB12/14150FETA	75	85	16	150	12
JAB12/14200FETA	75	135	16	200	12
JAB14/16100FETA	95	15	18	100	14
JAB14/16130FETA	95	45	18	130	14
JAB14/16150FETA	95	65	18	150	14
JAB14/16200FETA	95	115	18	200	14
JAB16/18110FETA	115	10	20	110	16
JAB16/18125FETA	115	25	20	125	16
JAB16/18150FETA	115	50	20	150	16
JAB16/18200FETA	115	100	20	200	16
