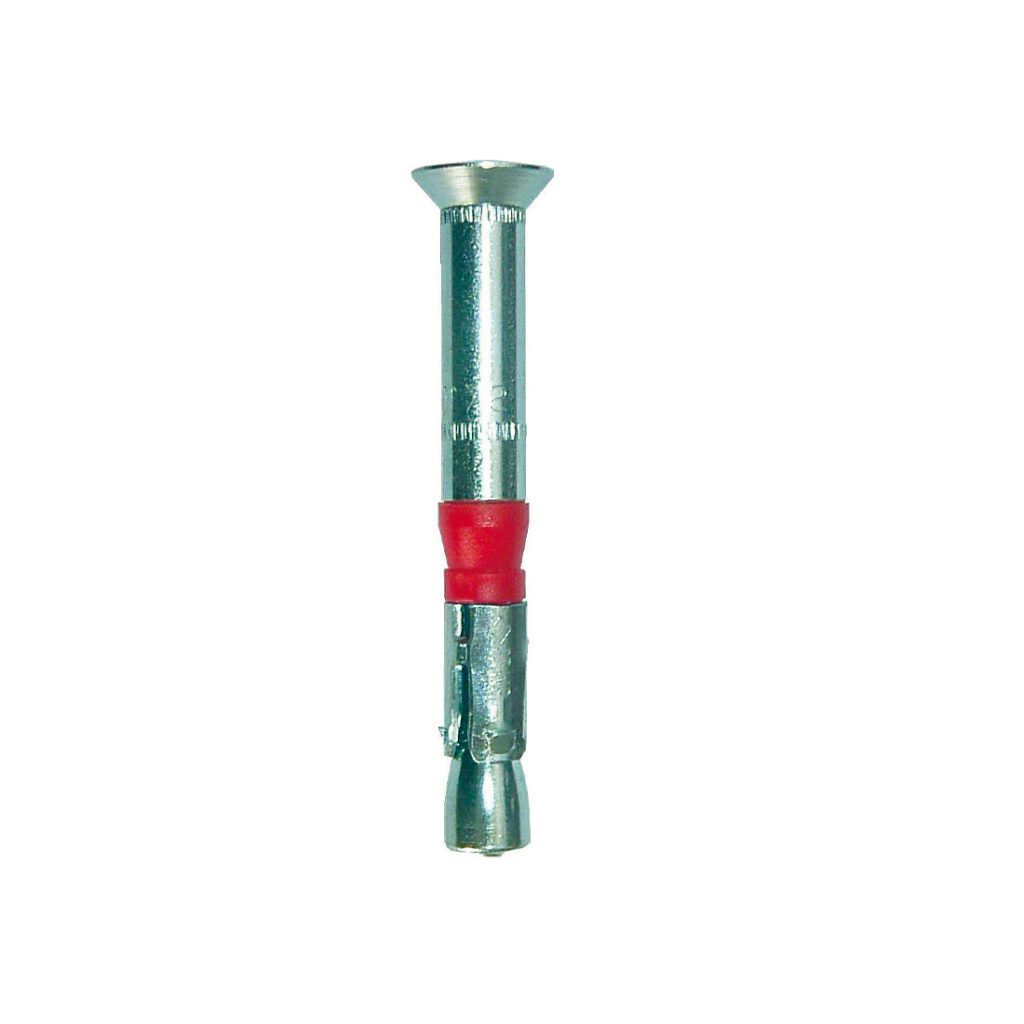

ETA OPTION 1 COUNTERSUNK HEAD HEAVY DUTY ANCHORS BZP

A high-performance anchor with a three part expansion sleeve allowing for smaller spacings and edge distances. The plastic compression ring ensures the clamping of the mounted piece to the work surface. A torque-controlled heavy duty anchor with a countersunk hex head drive suitable for use in cracked and non-cracked concrete over C20/25.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Three Way Expansion Sleeve
High-Performance
Through Fixing
Zinc Plated Minimum 5┬Ám
Fire Resistant Loading
Wide Range of Sizes

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Countersunk Thickness (tsk) mm
Total Length (L) mm
CSK Bolt Hexagon Drive (A/F) mm
Countersunk Diameter (dsk) mm
Tightening Torque (Tinst) Nm
SLSK10/10 M6 100 10 65 12 10 50 10 3.9 70 4 18 10
SLSK10/25 M6 100 10 65 12 10 50 25 3.9 85 4 18 10
SLSK10/45 M6 100 10 65 12 10 50 40 3.9 100 4 18 10
SLSK12/10 M8 120 12 80 14 11 60 10 5 80 5 20 25
SLSK12/25 M8 120 12 80 14 11 60 25 5 95 5 20 25
SLSK12/50 M8 120 12 80 14 11 60 50 5 120 5 20 25
SLSK15/10 M10 140 15 95 17 14 71 10 5.7 95 6 25 55
SLSK15/25 M10 140 15 95 17 14 71 25 5.7 110 6 25 55
SLSK15/50 M10 140 15 95 17 14 71 50 5.7 135 6 25 55
SLSK18/20 M12 160 18 105 20 16 80 20 6.7 115 7 30 70
SLSK18/40 M12 160 18 105 20 16 80 40 6.7 135 7 30 70

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

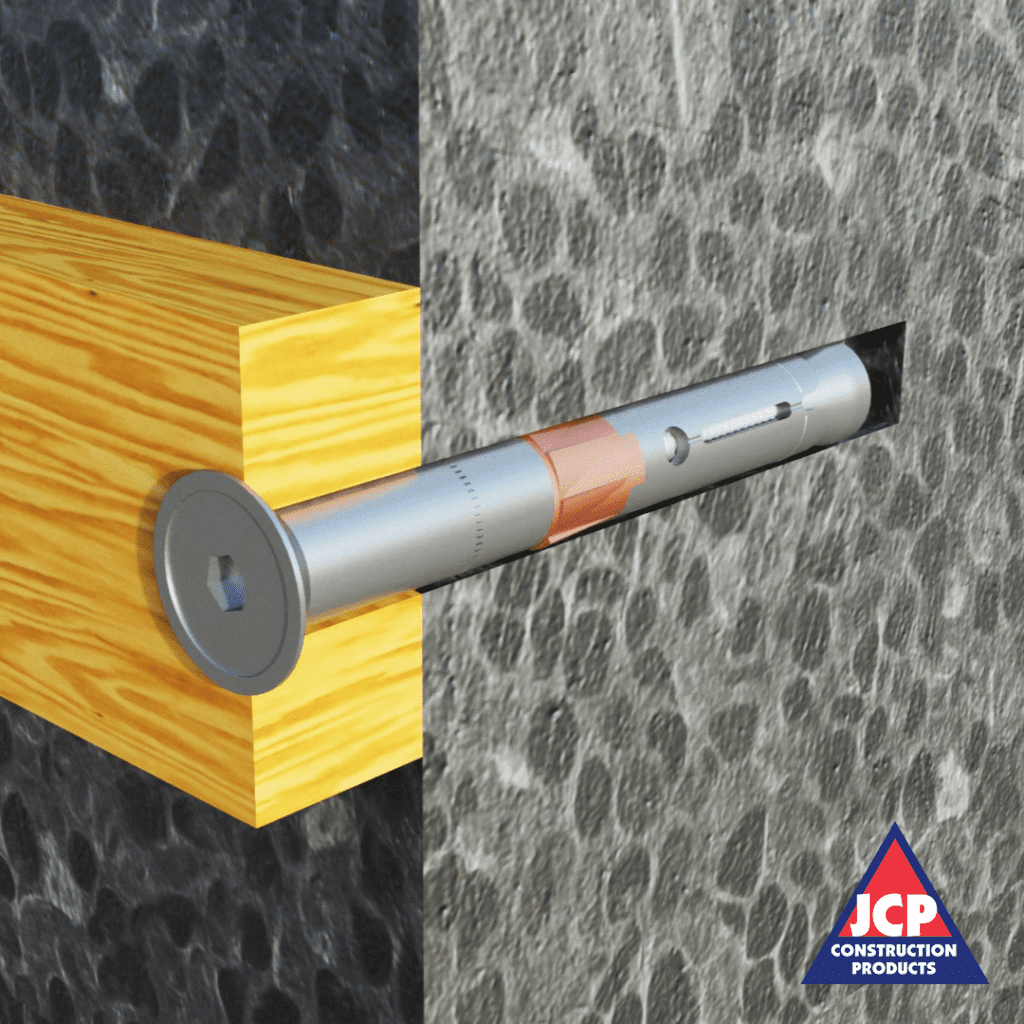

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
