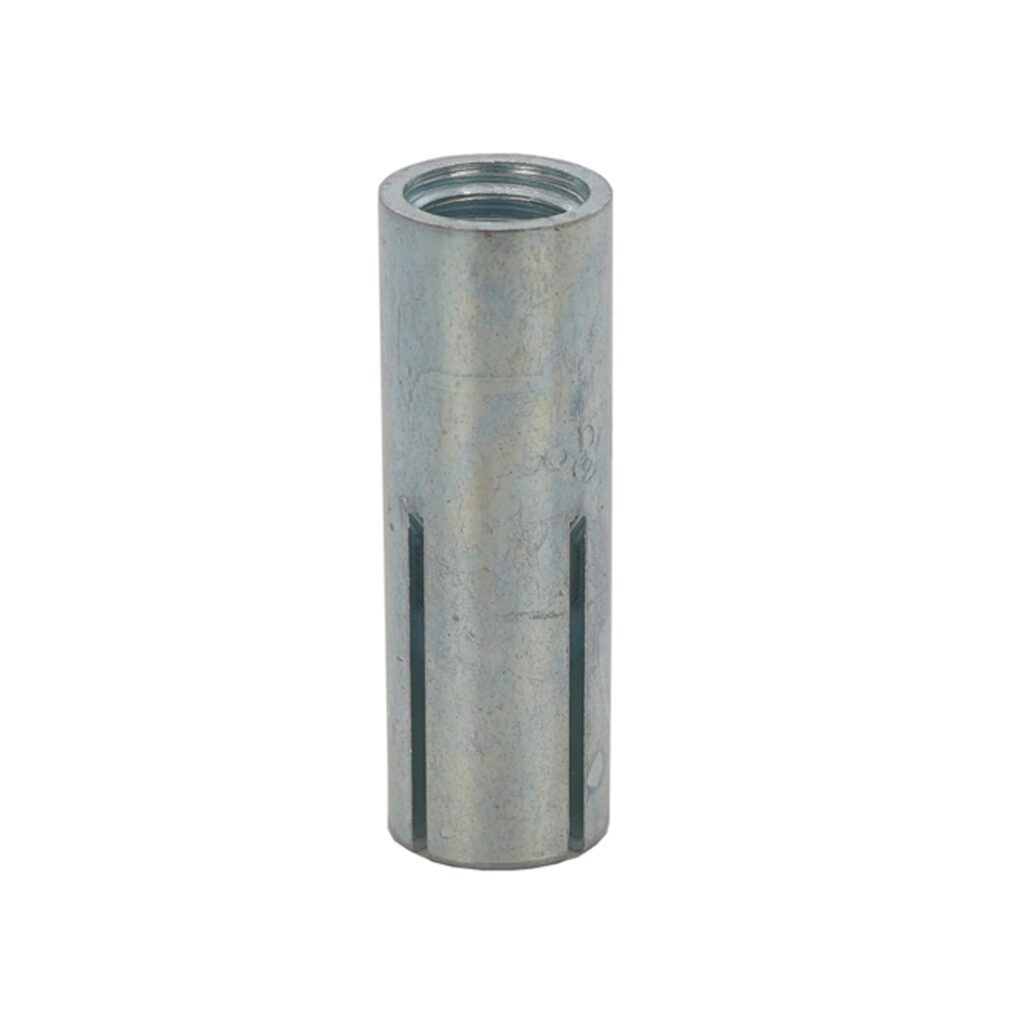

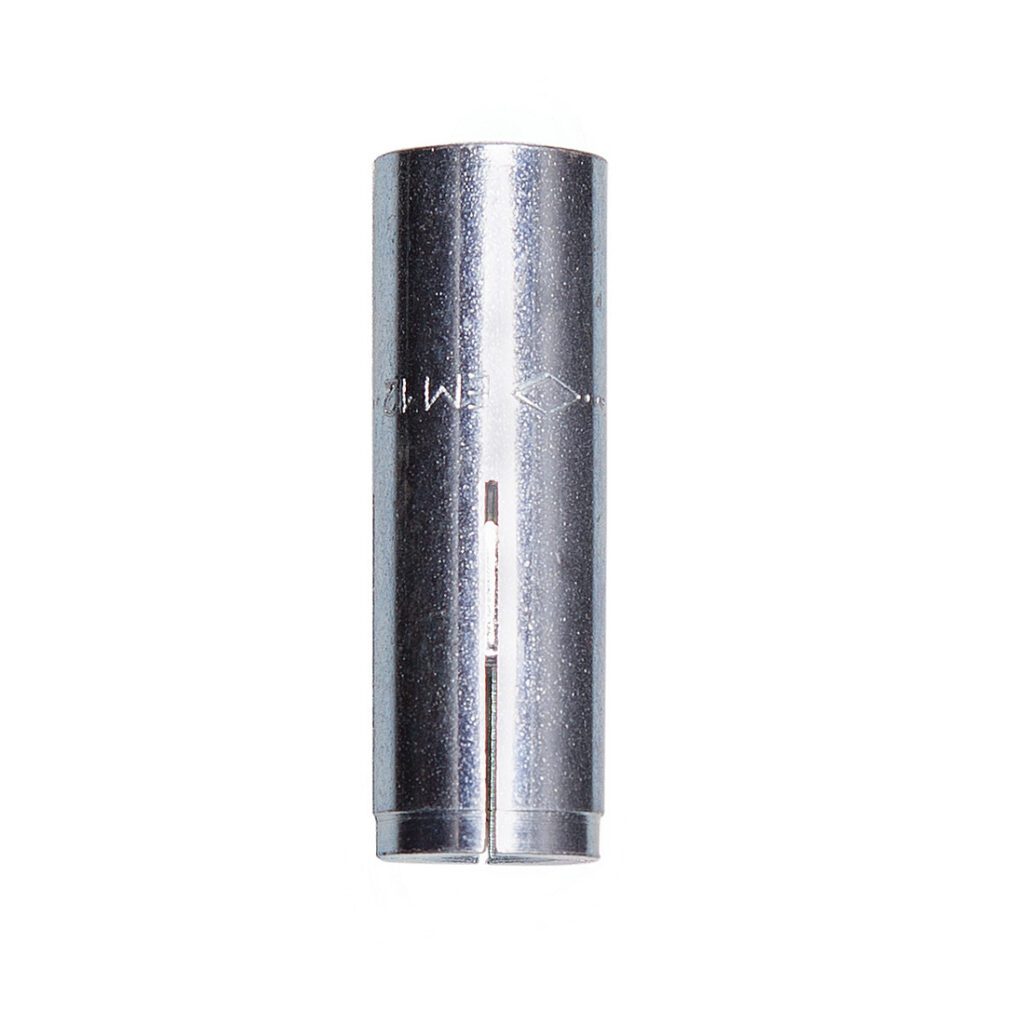

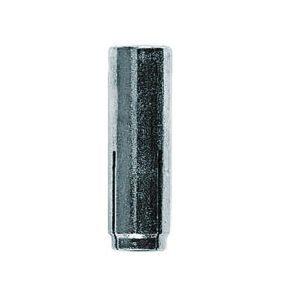

ETA DROP IN ANCHORS BZP

Deformation-controlled zinc plated anchor suitable for multiple use for non-structural applications in cracked and non-cracked concrete. The specific design gives the flexibility of using the anchor for applications with embedment depths greater than 30mm in solid concrete. Internal thread suitable for bolts or threaded studs.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Deformation-Controlled Expansion
Fire Resistant Loading
Manufactured in Europe
ETAG 001-6
Permanent Socket Allows For Removal and Replacement Of The Fixture
Use Conditions: Check The ETA
Zinc Plated Minimum 5µm

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Solid Cracked Concrete C20/25 To C50/60
Solid Non-Cracked Concrete C20/25 To C50/60

  • Suspending Services with Threaded Rods and Bolts
  • A Permanent Set Socket to Allow Fixture to be Removed
  • Scaffold Ring Bolts

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Drill Hole Diameter (d0) mm
Depth of Drill Hole (h0) mm
Anchor Length (LH) mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Minimum Member Thickness (hmin) mm
Minimum Spacing (Smin) mm
Minimum Edge Distance (Cmin) mm
Tightening Torque (Tinst) Nm
ADBM16 20 65 65 23 18 160 150 200 60
ADBM08 10 30 30 13 9 100 100 135 8
ADBM10 12 40 40 15 12 120 120 165 15
ADBM12 15 50 50 18 14 130 150 200 35

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through concrete using suitable hammer.

Hammer wedge home using correct setting punch.

Tighten with torque wrench to recommended to.

>
