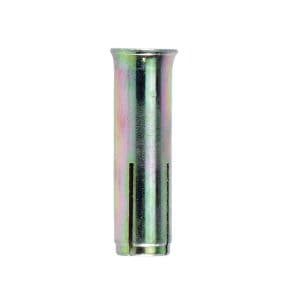

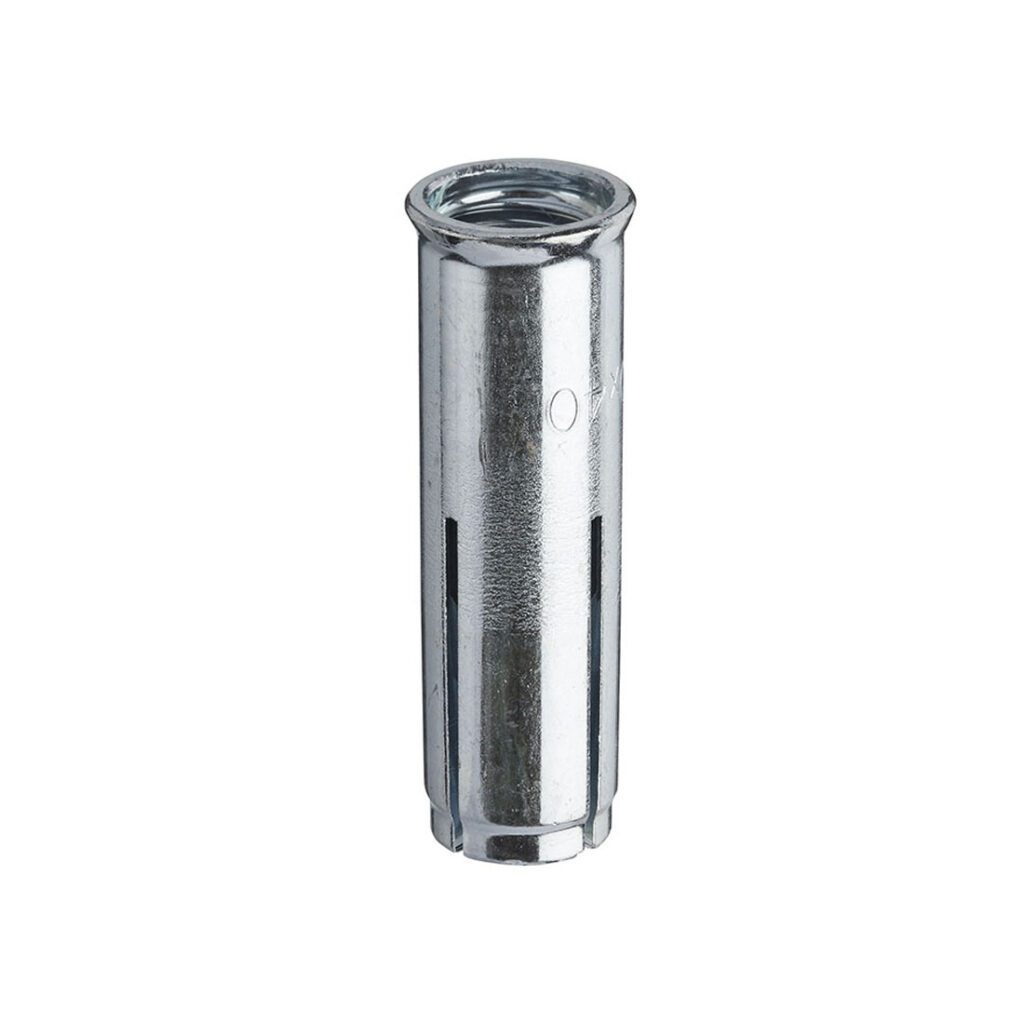

ETA LIPPED DROP IN ANCHORS BZP

Deformation-controlled zinc plated anchor suitable for multiple use, non-structural applications in concrete. The specific design gives flexibility of using the anchor for applications with limited embedment depths such as pre-cast, pre-stressed hollow core slabs. The internal thread is suitable for bolts or threaded studs.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Deformation-controlled Expansion
Fire Resistant Loading
Permanent Socket Allows For Removal and Replacement Of The Fixture
Use Conditions: Check The ETA
ETAG 001-6
Zinc Plated Minimum ┬Ám

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Solid Concrete C12/15 To C50/60
Pre-Cast Pre-Stressed Hollow Core Slabs C30/37 to C50/60

  • Suspending Services With Threaded Rods And Bolts
  • A Permanent Set Socket To Allow Fixture To Be Removed
  • Scaffold Ring Bolts
  • Lipped Version Allows The Anchor To Only Be Set Flush Avoiding Over Drilling

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Drill Hole Diameter (d0) mm
Depth of Drill Hole (h0) mm
Anchor Length (LH) mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Minimum Member Thickness (hmin) mm
Minimum Spacing (Smin) mm
Minimum Edge Distance (Cmin) mm
Tightening Torque (Tinst) Nm
Description
ADBM0825SH 10 25 25 12 9 * * * 8 * See TDS
ADBM0830SH 10 30 30 13 9 100 60 95 8
ADBM1025SH 12 25 25 12 12 * * * 15 * See TDS
ADBM1040SH 12 40 40 15 12 120 100 135 15
ADBM1225SH 15 25 25 12 14 * * * 35 * See TDS
ADBM1250SH 15 50 50 18 14 130 120 165 35

Installation Instructions

Installation in solid concrete: Drill correct diameter hole to corresponding depth.

For pre-cast pre-stressed hollow core slabs installation please check the TDS.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through concrete using suitable hammer.

Hammer wedge home using correct setting punch.

Tighten with torque wrench to recommended torque.

>
