COUNTERSUNK HEAD WALL SCREWS

The countersunk head wall screw is a light duty carbon steel fixing for use in concrete and masonry base materials. The fast and easy installation along with undercutting feature provide a rapid secure fixing without pre-drilling in wall-board or wood.

Finish: Zinc Plated (BZP)
Material: Steel
Undercutting Action with No Spinning/Stripping
Fast and Secure Installation
Expansion Free
Head Colour to Match Application
Minimum 5µm
Reaction to Fire Class A1

Product Information

Non-Cracked Concrete
Masonry
Wall-Board
Wood
Hollow/Solid Brick
Hollow/Solid Concrete Block
Hard Natural Stone

  • Light Weight Fixtures
  • Switch boxes
  • Light boxes
  • Hooks
  • Cable clips

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Shank Length mm
Head Thickness (H) mm
Description
Head Size
Drive Size

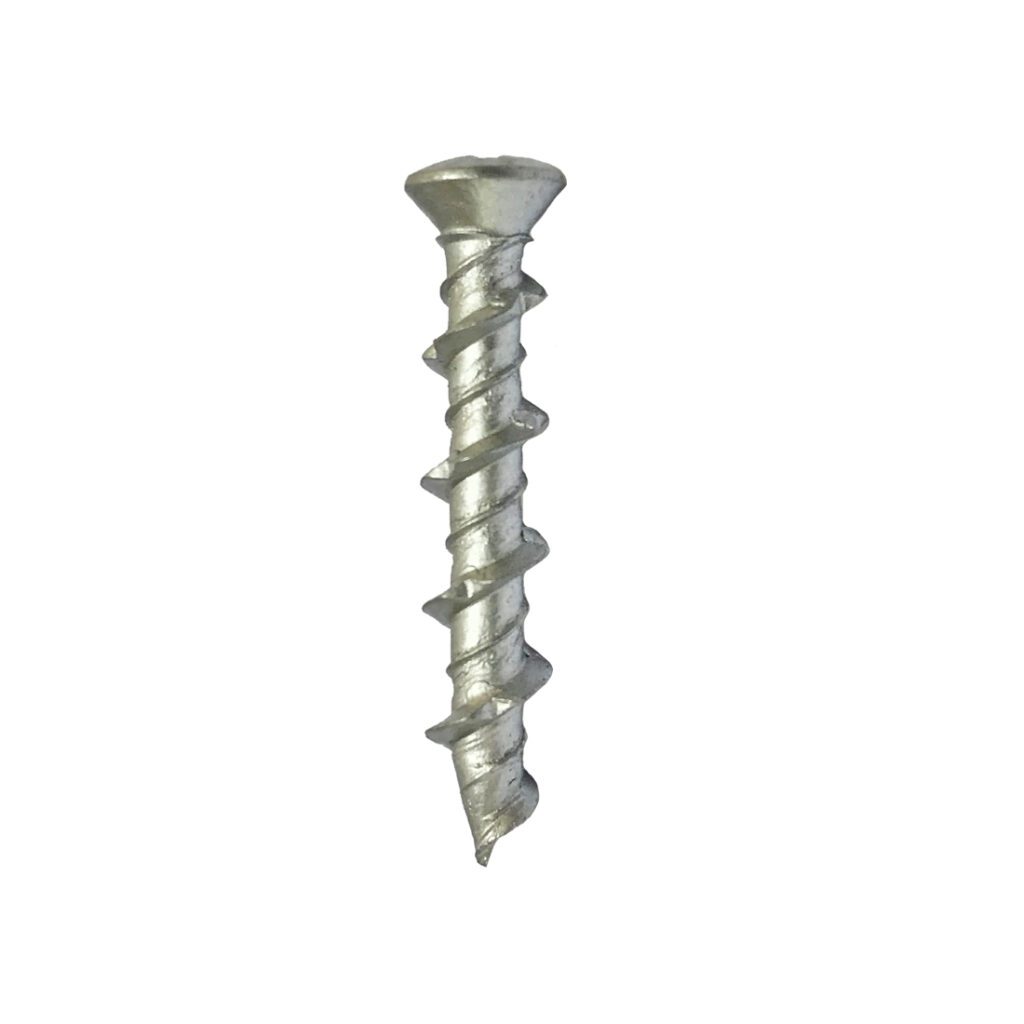

WS5032CSZ 5 6 32 4 Bright Zinc Plated No. 8 No. 2 Phillips
WS5038CSZ 5 6 38 4 Bright Zinc Plated No. 8 No. 2 Phillips
WS5050CSZ 5 6 50 4 Bright Zinc Plated No. 8 No. 2 Phillips

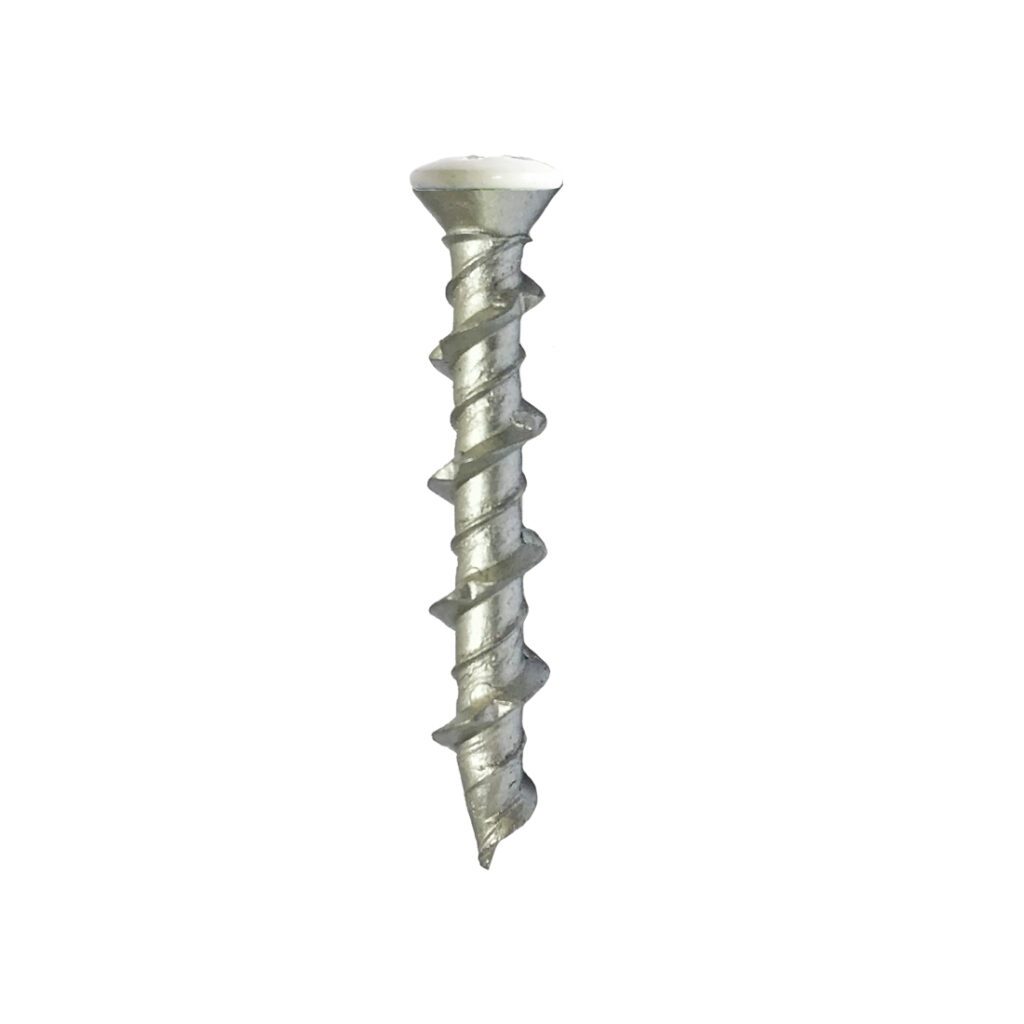

WS5032CSW 5 6 32 4 White No. 8 No. 2 Phillips
WS5038CSW 5 6 38 4 White No. 8 No. 2 Phillips
WS5050CSW 5 6 50 4 White No. 8 No. 2 Phillips

Installation Instructions

Drill correct diameter hole to corresponding depth. No pre-drilling is required for fastening into wall board or wood.

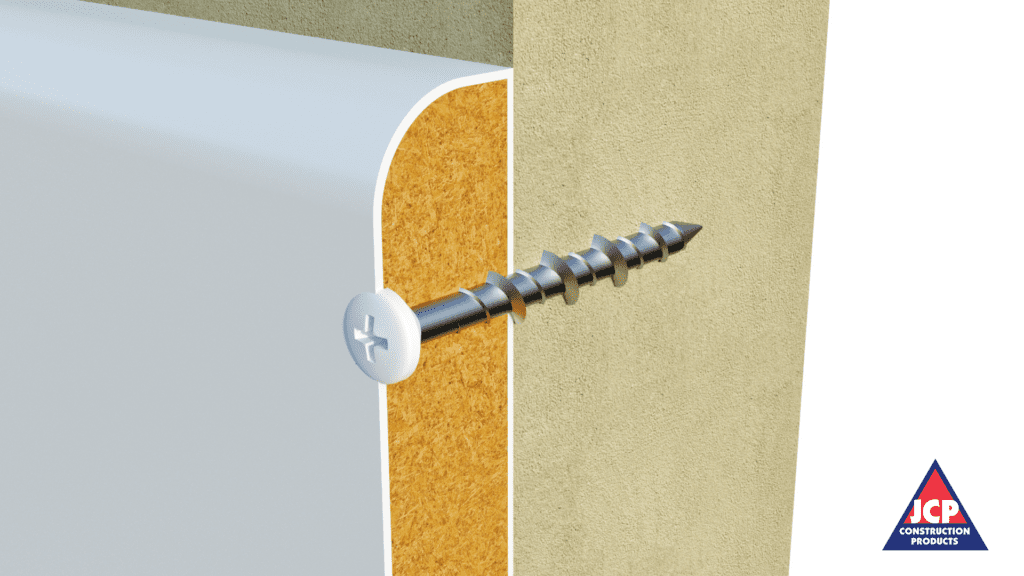

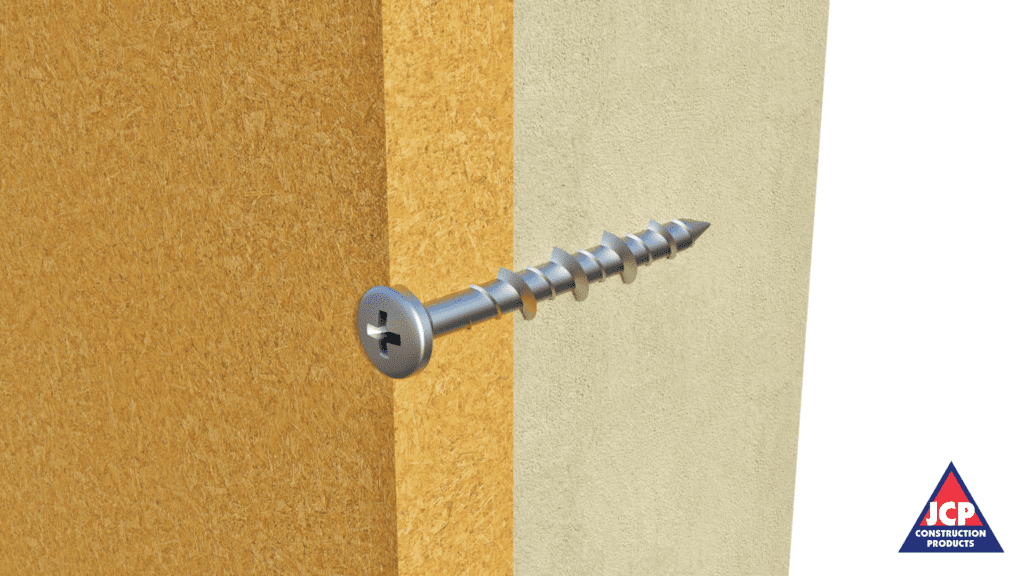

Insert Wall Screw in through fixture into base material and use No. 2 Phillips driver to screw down.

>
