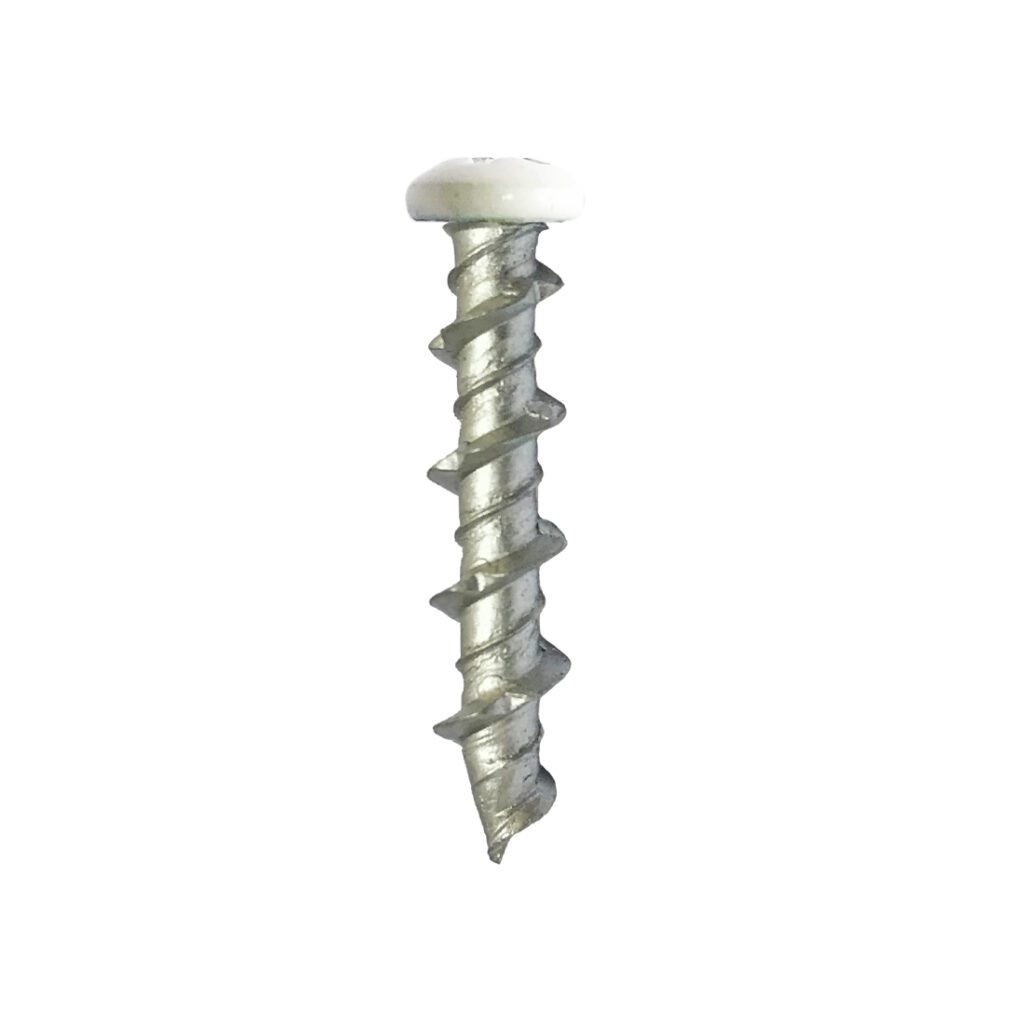

PAN HEAD WALL SCREWS

The pan head wall screw is a light duty carbon steel fixing for use in concrete and masonry base materials. The fast and easy installation along with undercutting feature provide a rapid secure fixing without pre-drilling in wall-board or wood.

Finish: Zinc Plated (BZP)
Material: Steel
Undercutting Action with No Spinning/Stripping
Fast and Secure Installation
Expansion Free
Head Colour to Match Application
Minimum 5µm
Reaction to Fire Class A1

Data SheetData Sheet

Product Information

Non-Cracked Concrete
Masonry
Wall-board
Wood
Hollow/Solid Brick
Hollow/Solid Concrete Block
Hard Natural Stone

  • Light Weight Fixtures
  • Switch boxes
  • Light boxes
  • Hooks
  • Cable clips

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Shank Length mm
Head Thickness (H) mm
Description
Head Size
Drive Size
WS5032PHZ 5 6 32 3 Bright Zinc Plated No. 8 No. 2 Phillips
WS5038PHZ 5 6 38 3 Bright Zinc Plated No. 8 No. 2 Phillips
WS5050PHZ 5 6 50 3 Bright Zinc Plated No. 8 No. 2 Phillips
WS5032PHW 5 6 32 3 White No. 8 No. 2 Phillips
WS5038PHW 5 6 38 3 White No. 8 No. 2 Phillips
WS5050PHW 5 6 50 3 White No. 8 No. 2 Phillips

Installation Instructions

Drill* correct diameter hole to corresponding depth. No pre-drilling is required for fastening into wall board or wood.

Insert Wall Screw in through fixture into base material and use No. 2 Phillips driver to screw down.

>
