BLIND BOLTS ZINC FLAKE

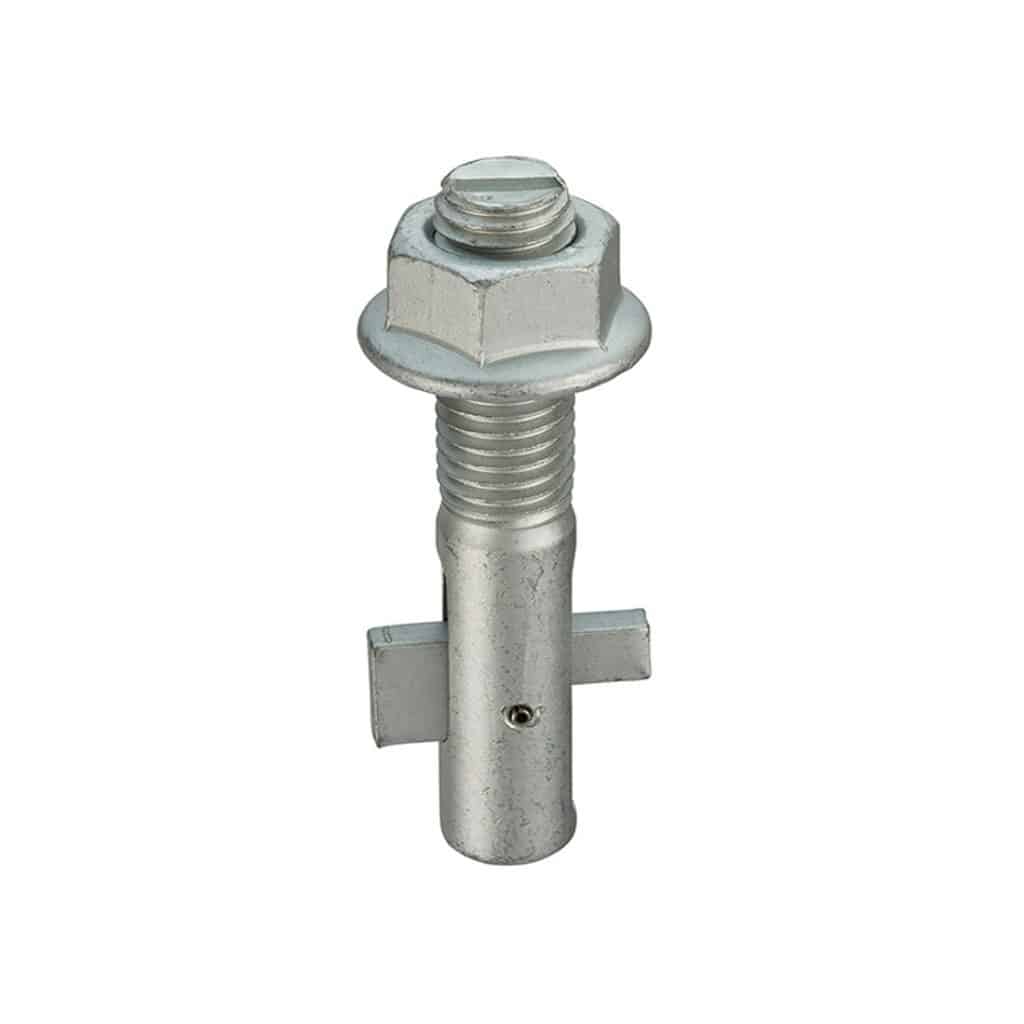

The Blind Bolt® is a constructional cavity fixing, suitable for fixing to steel sections where access is available from one side only. It can be used in a girder cavity or a box section where access is available from one side only. The unique design helps to reduce the installation time. The wide range of sizes gives flexibility of choosing the correct bolt according to the fixture thickness.

Finish: Zinc Flake
Material: Grade 10.9 Steel
Fast and Secure Installation
High-Performance
Removable
Property Class10.9
Design Values To BS 5950-1
Reaction To Fire Class A1
Design Values To EN 1993-1-8
Re-Useable
Horizontally And Vertically Down Positions

Product Information

  • Box Sections
  • Vertical Cylindrical Sections
  • Hollow Profiles
  • Simple Connections

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Size
Length (L) mm
Hole Diameter mm
Min Fixture Thickness (tfix) mm
Max Fixture Thickness (tfix) mm
Anchor Clearance (V0) mm
Depth Clearance (D0) mm
Minimum Hole Centres (Pmin) mm
Width Across Flats (A/F) mm
Width Across Corners (A/C) mm
Washer Diameter (d2) mm
Description
BB08050ZF M8 50 9 9 24 19 25 20 13 15 18
BB10060ZF M10 60 11 10 30 23 30 20 16 17 22
BB10095ZF M10 95 11 25 65 23 30 20 16 17 22
BB10130ZF M10 130 11 55 100 23 30 20 16 17 22
BB14075ZF M14 75 15 14 35 32 38 32 21 24 30 It is strongly recommended to use the installation gauge when installing these bolts.
BB14125ZF M14 125 15 28 82 32 38 32 21 24 30 It is strongly recommended to use the installation gauge when installing these bolts.
BB14185ZF M14 185 15 75 142 32 38 32 21 24 30 It is strongly recommended to use the installation gauge when installing these bolts.
BB30140ZF M30 140 32 27 60 65 72 75 46 52 56 It is strongly recommended to use the installation gauge when installing these bolts.
>
