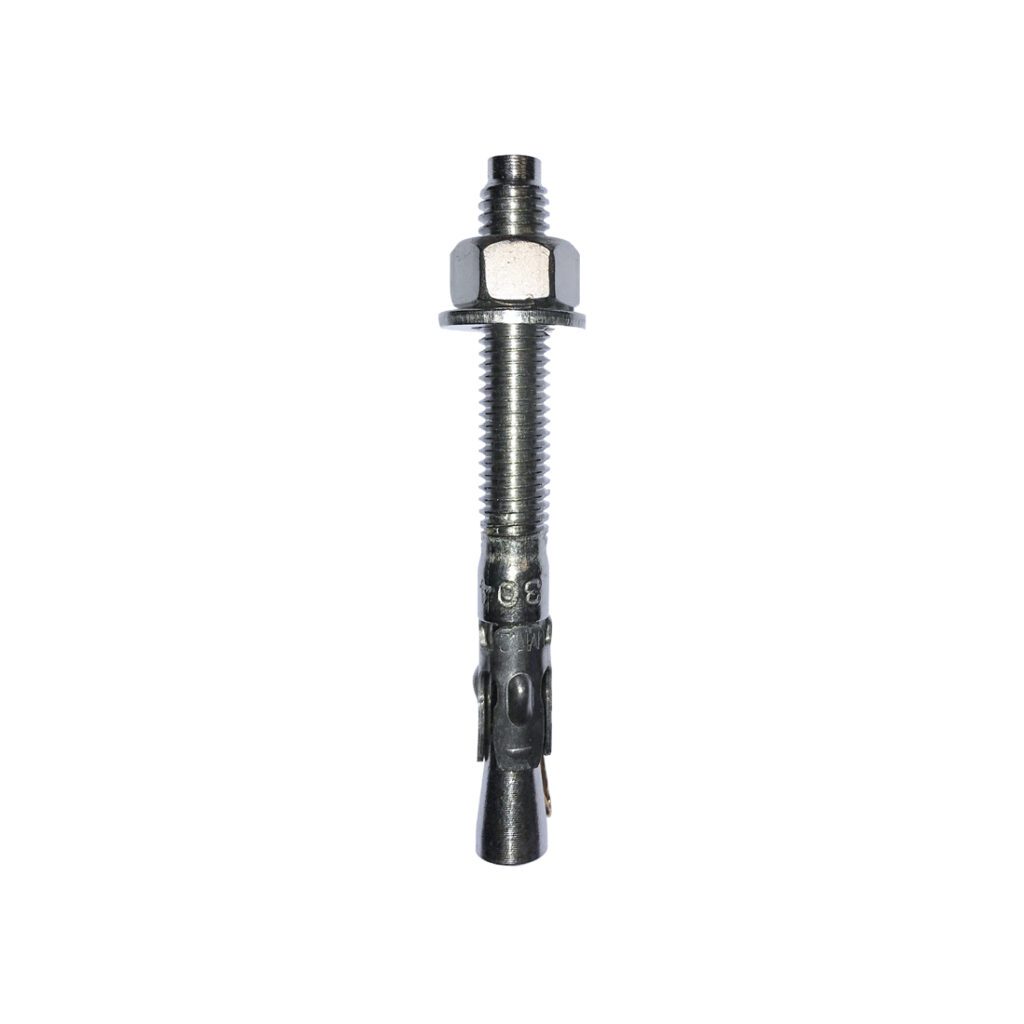

THROUGHBOLTS A2 STAINLESS STEEL

The stainless steel throughbolt is grade A2-304. It is the ultimate “through fixing” with the hole diameter as the bolt diameter. It is ideal for bolting awkward fixtures in place without marking out, removing and repositioning. It is a torque-controlled anchor suitable for use in concrete over C20/25 strength.

Material: A2-304 Stainless Steel
Stainless Steel A2-304
Fast and Secure Installation
Three Way Expansion Sleeve
Reaction To Fire Class A1
Through Fixing
Suitable For External USe
Wide Range of Sizes

Approvals

Pro Suite accreditation

Product Information

Concrete C20/25 To C50/60
Non-Cracked Concrete

  • Outdoor Use
  • Metal Structures
  • Brackets
  • Machines
  • Racking
  • Railings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Size of Thread
Total Length (L) mm
TSSA206045 M6 45
TSSA206065 M7 65
TSSA208050 M8 50
TSSA208075 M8 75
TSSA208095 M8 95
TSSA208120 M8 120
TSSA210060 M10 60
TSSA210080 M10 80
TSSA210100 M10 100
TSSA210125 M10 125
TSSA210150 M10 150
TSSA210175 M10 175
TSSA212085 M12 85
TSSA212100 M12 100
TSSA212115 M12 115
TSSA212145 M12 145
TSSA212200 M12 200
TSSA216110 M16 110
TSSA216125 M16 125
TSSA216150 M16 150
TSSA216175 M16 175
TSSA220170 M20 170
TSSA220220 M20 220

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
