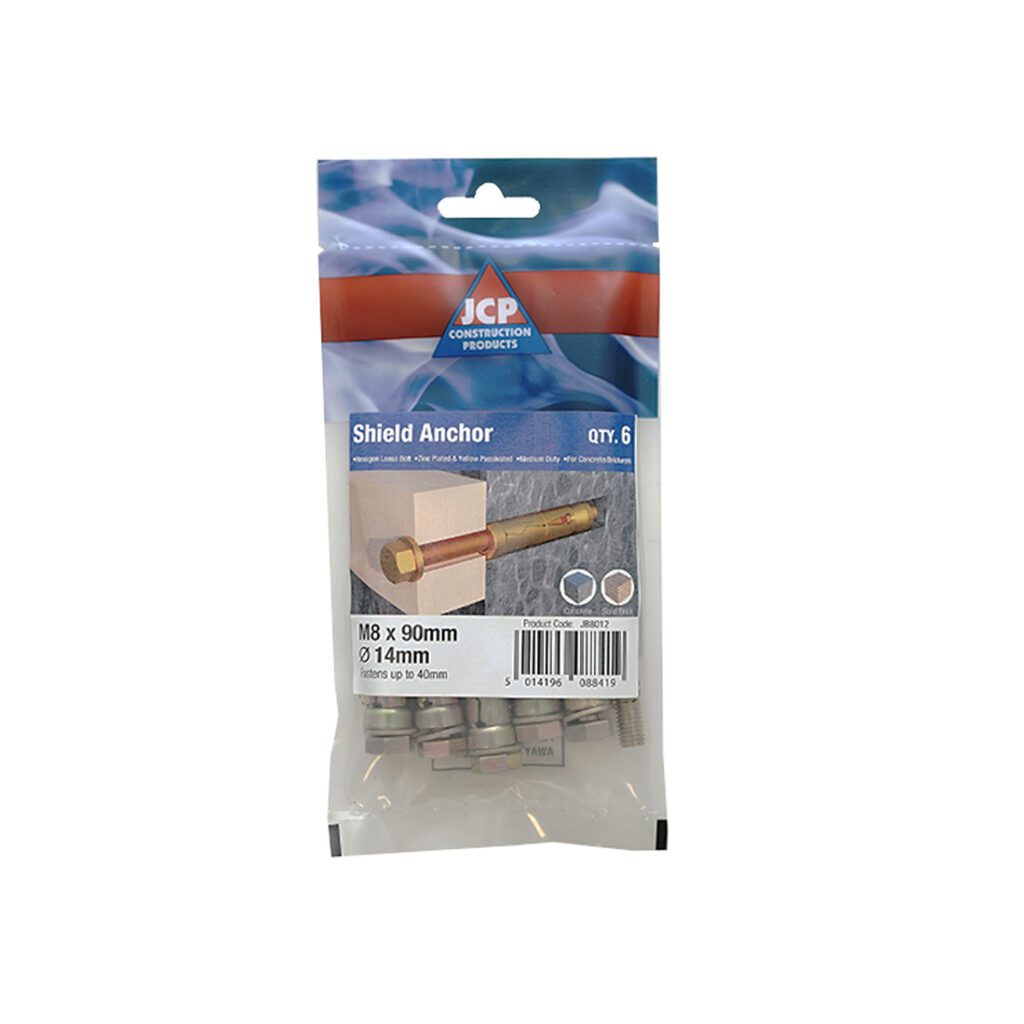

LOOSE BOLT SHIELD ANCHORS ZYP

The loose bolt shield anchor is a three-way expansion shield suitable for use in solid concrete blocks and solid brickwork. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Zinc Plated and Yellow Passivated Minimum 5µm

Product Information

Non-Cracked Concrete C20/25 & C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JB8000 M6 x 10mm 12
JB8003 M6 x 25mm 12
JB8006 M8 x 10mm 14
JB8009 M8 x 25mm 14
JB8012 M8 x 40mm 14
JB8015 M10 x 10mm 16
JB8018 M10 x 25mm 16
JB8021 M10 x 50mm 16
JB8024 M10 x 75mm 16
JB8027 M12 x 10mm 20
JB8030 M12 x 25mm 20
JB8033 M12 x 60mm 20

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Position fixture. Insert bolt. Tighten with torque wrench to recommended torque.

>
