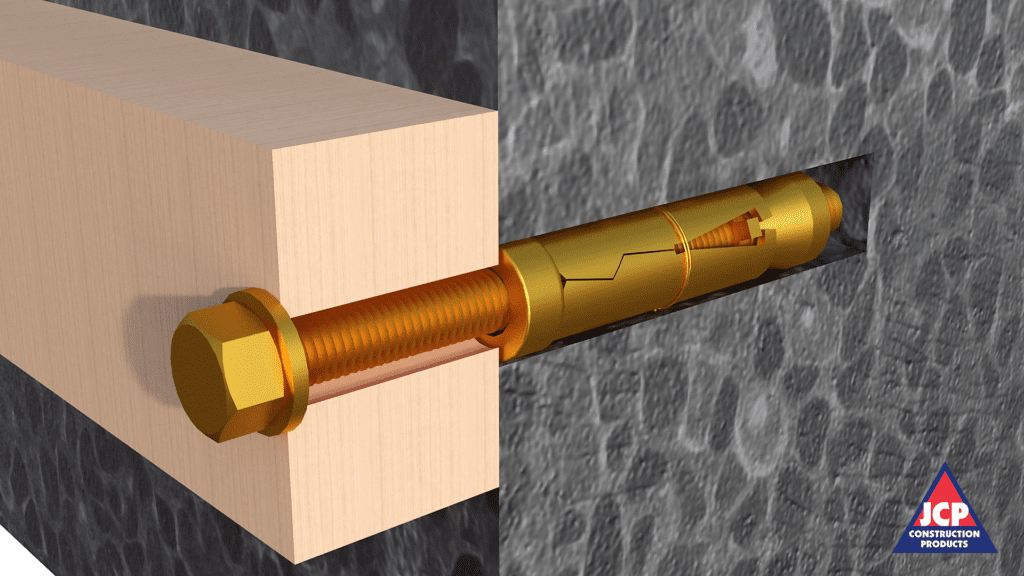

• LOOSE BOLT SHIELD ANCHORS ZYP video thumbnail

LOOSE BOLT SHIELD ANCHORS ZYP

The loose bolt shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion

Data SheetData Sheet

Approvals

Pro Suite accreditation

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length Under Head (L) mm
Hole Diameter mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Min Structure Thickness (h) mm
Installation Torque (Tinst) Nm
ALB0610 6 55 12 5 7 45 50 100 6
ALB0625 6 70 12 15 7 45 50 100 6
ALB0640 6 85 12 45 7 45 50 100 6
ALB0810 8 60 14 5 9 50 55 100 14
ALB0825 8 75 14 20 9 50 55 100 14
ALB0840 8 90 14 35 9 50 55 100 14
ALB1010 10 70 16 8 12 60 65 120 27
ALB1025 10 85 16 18 12 60 65 120 27
ALB1050 10 110 16 33 12 60 65 120 27
ALB1075 10 135 16 43 12 60 65 120 27
ALB1210 12 85 20 5 14 75 85 160 46
ALB1225 12 100 20 25 14 75 85 160 46
ALB1240 12 115 20 45 14 75 85 160 46
ALB1260 12 135 20 65 14 75 85 160 46
ALB1615 16 135 25 10 18 110 125 200 110
ALB1630 16 150 25 30 18 110 125 200 110
ALB1660 16 180 25 55 18 110 125 200 110

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Position fixture. Insert bolt.
Tighten with torque wrench to recommended torque.

>
