EYE BOLTS SHIELD ANCHORS ZYP

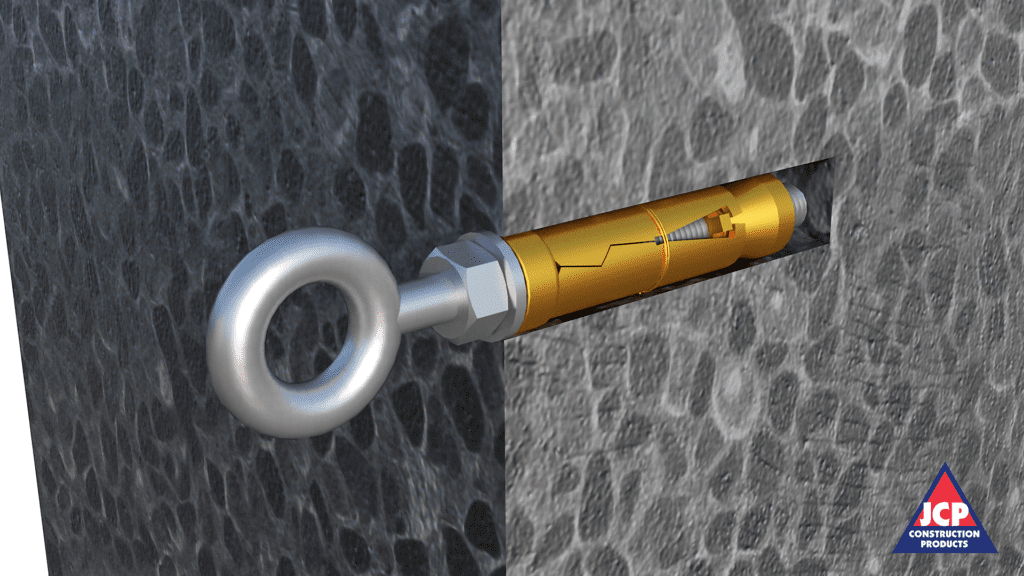

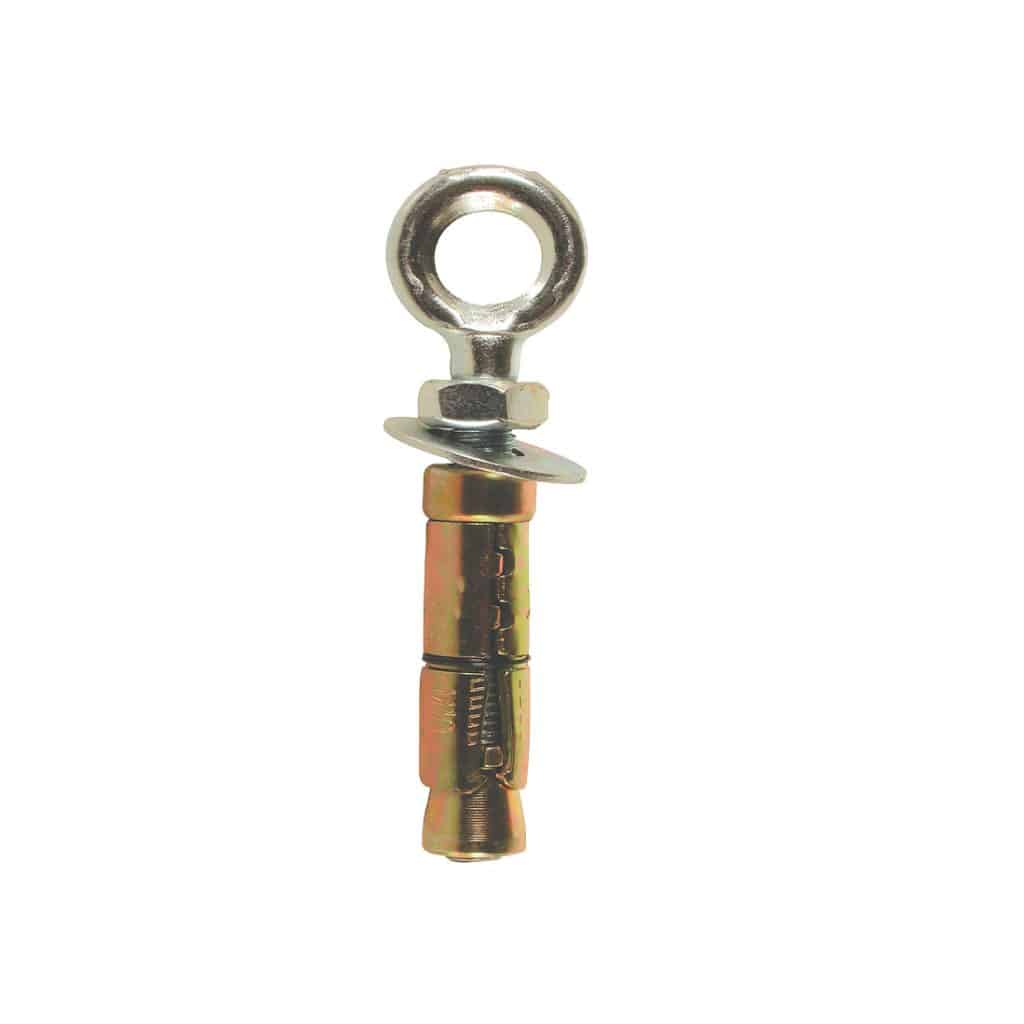

The eye bolt shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Forged Eye for Extra Strength

Data SheetData Sheet

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Attaching Wires
  • Bird Deterrents
  • Ladder Restraints.

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Drill Hole Diameter (d0) mm
Eye Diameter mm
Overall Length mm
Min Hole Depth (h1) mm
AEBM06 M6 12 10 80 50
AEBM08 M8 14 11 95 55
AEBM10 M10 16 14 115 65
AEBM12 M12 20 16 130 85

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert shield with hook or eye assembled, into hole.

Tighten nut to recommended torque.

>
