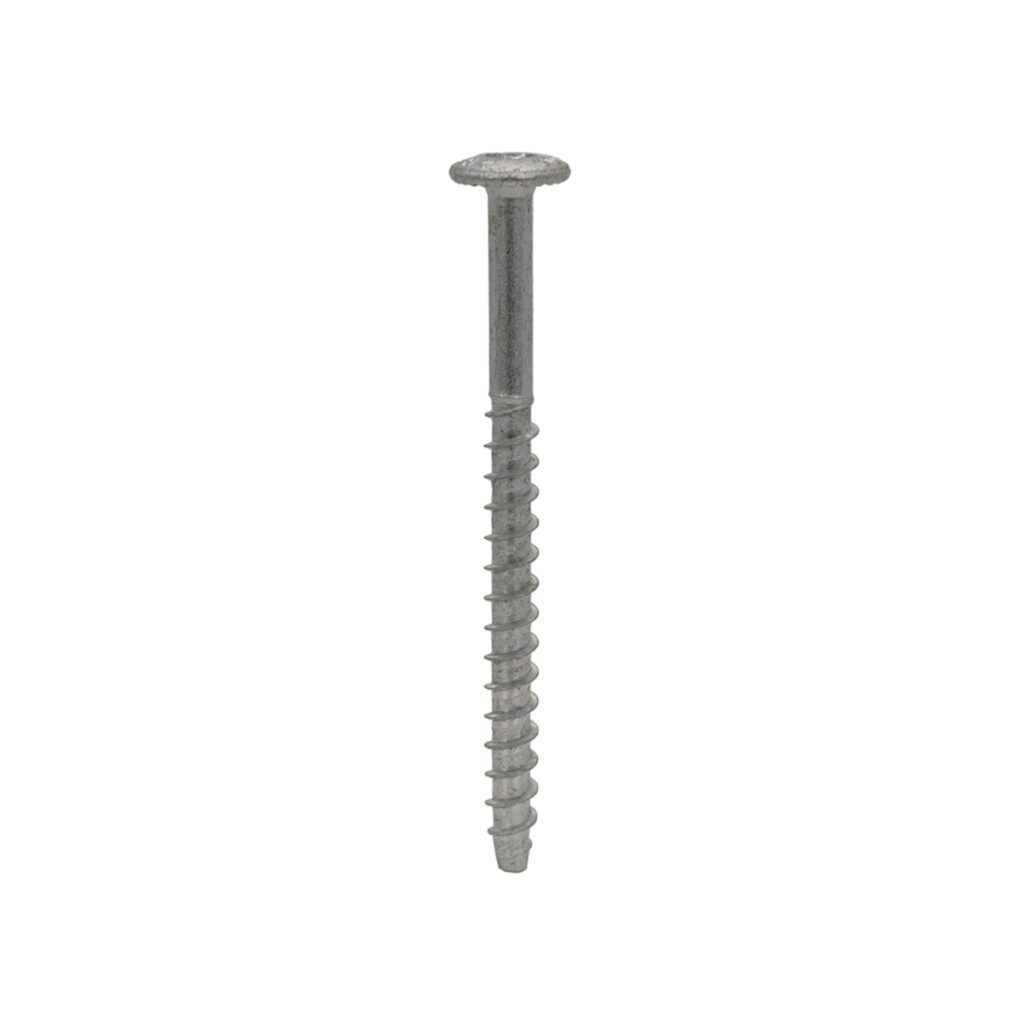

ETA PAN HEAD ANKERBOLTS A4 STAINLESS STEEL

A bi-metallic A4-316 stainless steel and alloy steel ankerbolt with a carbon steel tip with leading threads to cut into concrete.

Fast and Secure Installation
Expansion Free
Undercutting Action
Through Fixing
High-Performance
Fire Resistant Loading
Carbon Steel Tip With Leading Threads To Cut Into Concrete
Bi-Metallic
Suitable for External Use and Marine Environments

Data SheetData Sheet

Approvals

FR accreditation
ETA Multiple-Use accreditation
Pro Suite accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

ETAETA

Range Data

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Thread Length (Lth) mm
JAB06/08050PHSS 6 8 50 45
JAB06/08075PHSS 6 8 75 55
JAB06/08100PHSS 6 8 100 70

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench (maximum power setting according to the table below).

Finish by tightening with torque wrench to recommended torque and control of complete setting by having the screw head fully in contact with the fixture part.

>
