ETA HEXAGON HEAD NYLON FRAME FIXINGS BZP

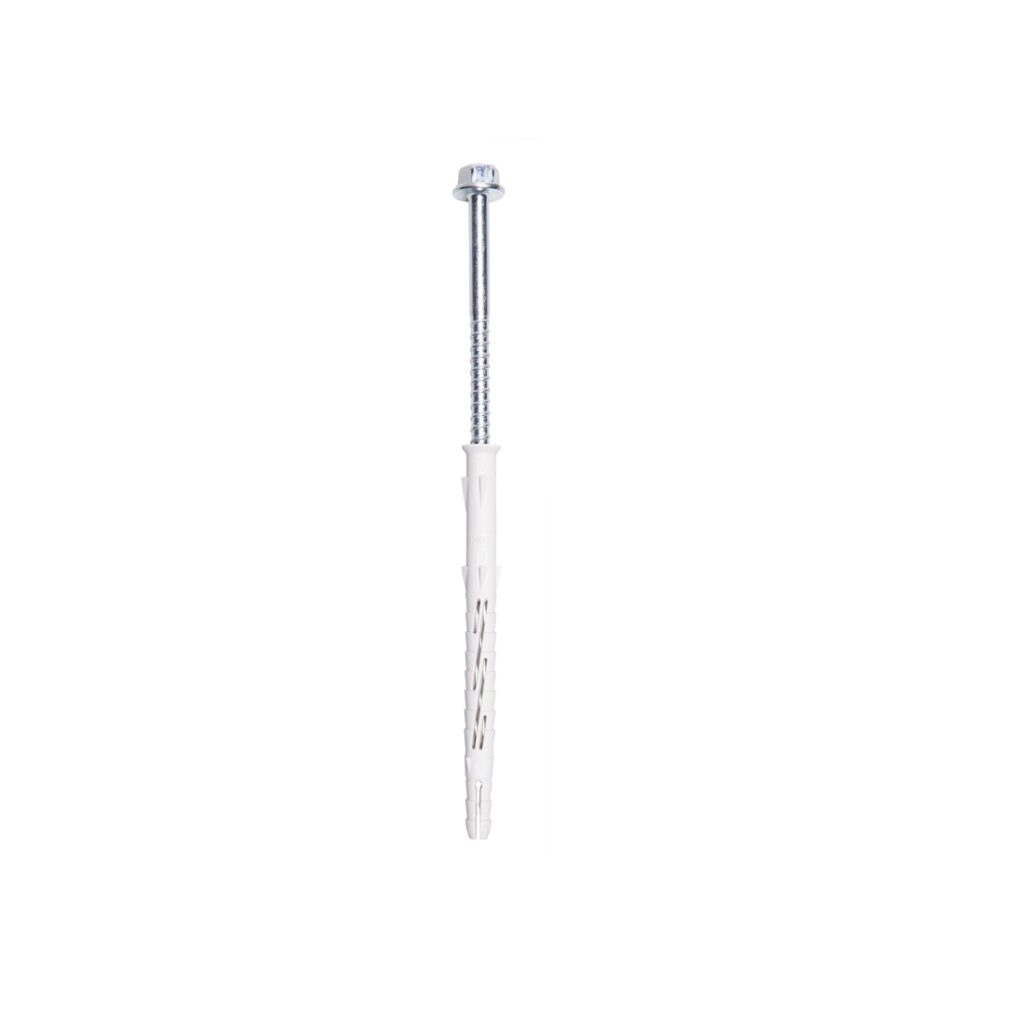

An ETA hexagon head nylon frame fixing includes a matched screw and extended plug for anchoring timber to a wide variety of materials. The European Technical Approval allows for the use in a number of base materials for multiple fixings in non-structural applications.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Ribbed Plug Manufactured From Polyamide PA6 Nylon
Through Fixing
High-Expansion Ratio
For Use In Solid And Hollow Base Material
Fire Resistance Loading
Tested to ETAG 020-01, Plastic Anchors For Multiple Use For Non-Structural Application

Data SheetData Sheet

Approvals

FR accreditation
ETA Multiple-Use accreditation
Pro Suite accreditation

Product Information

Concrete
Masonry

  • Timber Frames
  • Battens
  • Windows and Other Wooden Products to Concrete and Masonry

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Anchor Plug Length (Lplug) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
NFF08080ETAH 8 80 10 90
NFF08100ETAH 8 100 30 90
NFF08120ETAH 8 120 50 90
NFF08140ETAH 8 140 70 90
NFF10080ETAH 10 80 10 90
NFF10100ETAH 10 100 30 90
NFF10120ETAH 10 120 50 90
NFF10140ETAH 10 140 70 90
NFF10160ETAH 10 160 90 90

Installation Instructions

Drill correct diameter hole through fixture to correct depth in base material.

Clean hole by brushing and blowing.

Insert frame fixing through fixture into base material and tighten screw.

>
