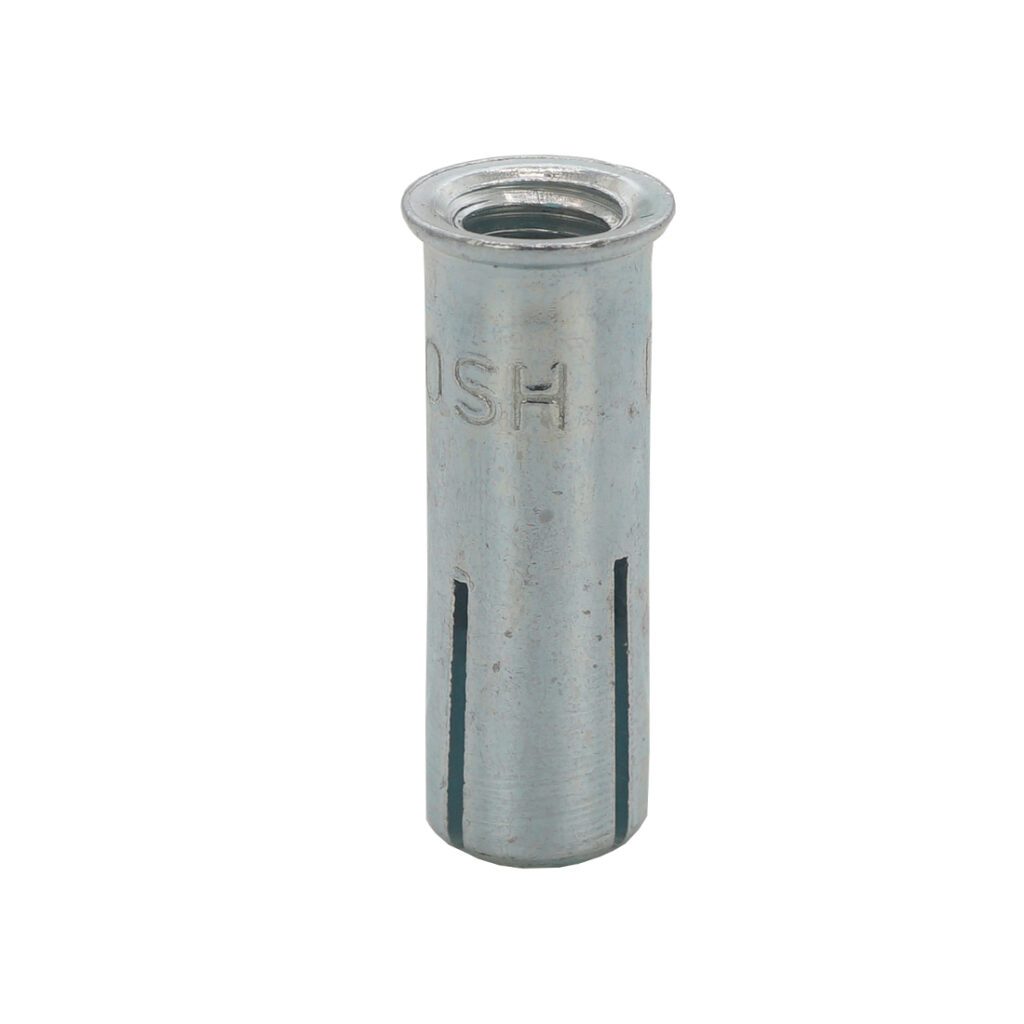

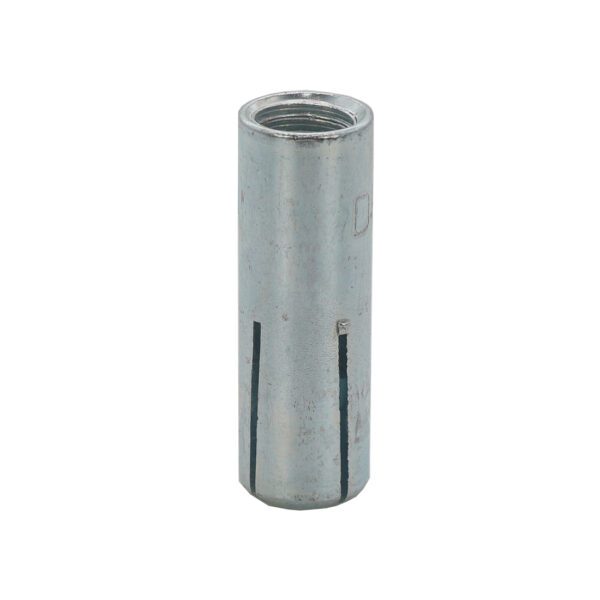

ETA APPROVED MULTIPLE USE LIPPED DROP-IN ANCHORS BZP

Deformation-controlled zinc plated anchor suitable for multiple use, non-structural applications in concrete. The specific design gives flexibility of using the anchor for applications with limited embedment depths such as pre-cast, pre-stressed hollow core slabs. The internal thread is suitable for bolts or threaded studs.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Solid Cracked Concrete C20/25 To C50/60
Solid Non-Cracked Concrete C20/25 To C50/60
ETAG 001-6
Fire Resistance Loading
Minimum 5µm
Cost-Effective Solution

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Solid Cracked Concrete C20/25 To C50/60
Solid Non-Cracked Concrete C20/25 To C50/60

  • Suspending Services With Threaded Rods And Bolts
  • A Permanent Set Socket To Allow Fixture To Be Removed
  • Lipped Version Allows The Anchor To Only Be Set Flush Avoiding Over Drilling

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Finish
Material
Internal Threaded Diameter mm
Drill Hole Diameter (d0) mm
Depth of Drill Hole (h0) mm
Anchor Length (L) mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Minimum Member Thickness (hmin) mm
Minimum Spacing (Smin) mm
Minimum Edge Distance (Cmin) mm
Tightening Torque (Tinst) Nm
DBM0830SH Bright Zinc Plated (BZP) Steel 8 10 30 30 13 9 80 200 150 11
DBM1030SH Bright Zinc Plated (BZP) Steel 10 12 30 30 13 12 80 200 150 17
DBM1040SH Bright Zinc Plated (BZP) Steel 10 12 40 40 19 12 80 200 150 17
DBM1250SH Bright Zinc Plated (BZP) Steel 12 16 50 50 22 14 100 250 150 38

Installation Instructions

Drill correct diameter hole to corresponding depth

Clean hole by blowing to remove drilling debris and dust

Insert anchor through concrete using suitable hammer

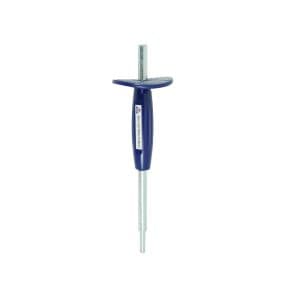

Hammer wedge home using correct setting punch

Tighten with torque wrench to recommend torque

>
