DROP IN ANCHORS ZYP

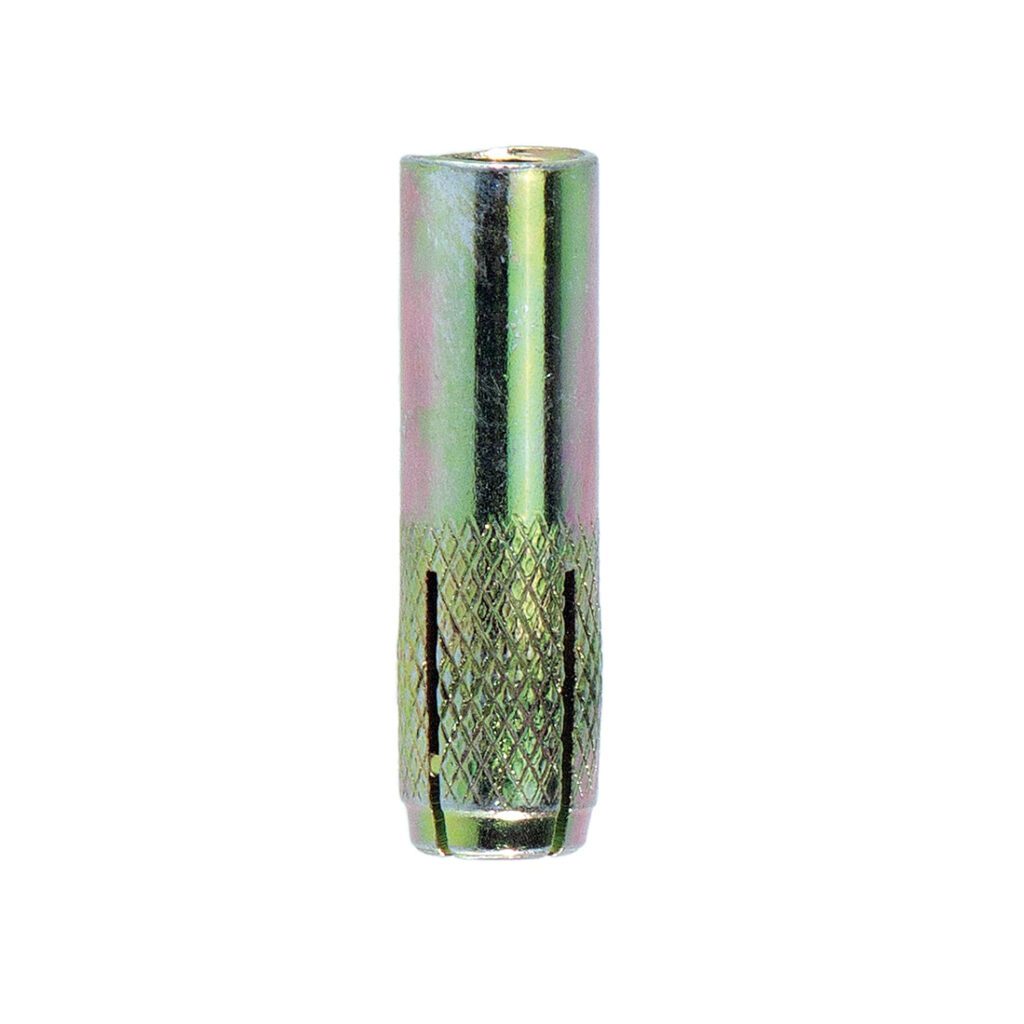

An internally threaded socket anchor for use with bolts or threaded rod of any length. Full expansion can be guaranteed by using the correct shouldered setting punch. Suitable for use in solid concrete.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Deformation-Controlled Expansion
Fast and Secure Installation
Reaction To Fire Class A1
Permanent Socket Allows For Removal And Replacement Of The Fixture
Zinc Plated and Yellow Passivated

Product Information

Concrete C20/25 to C50/60
Non-Cracked Concrete
Dry Internal Conditions

  • Suspending Services with Threaded Rods and Bolts
  • A Permanent Set Socket to Allow Fixture to be Removed
  • Scaffold Ring Bolts

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size

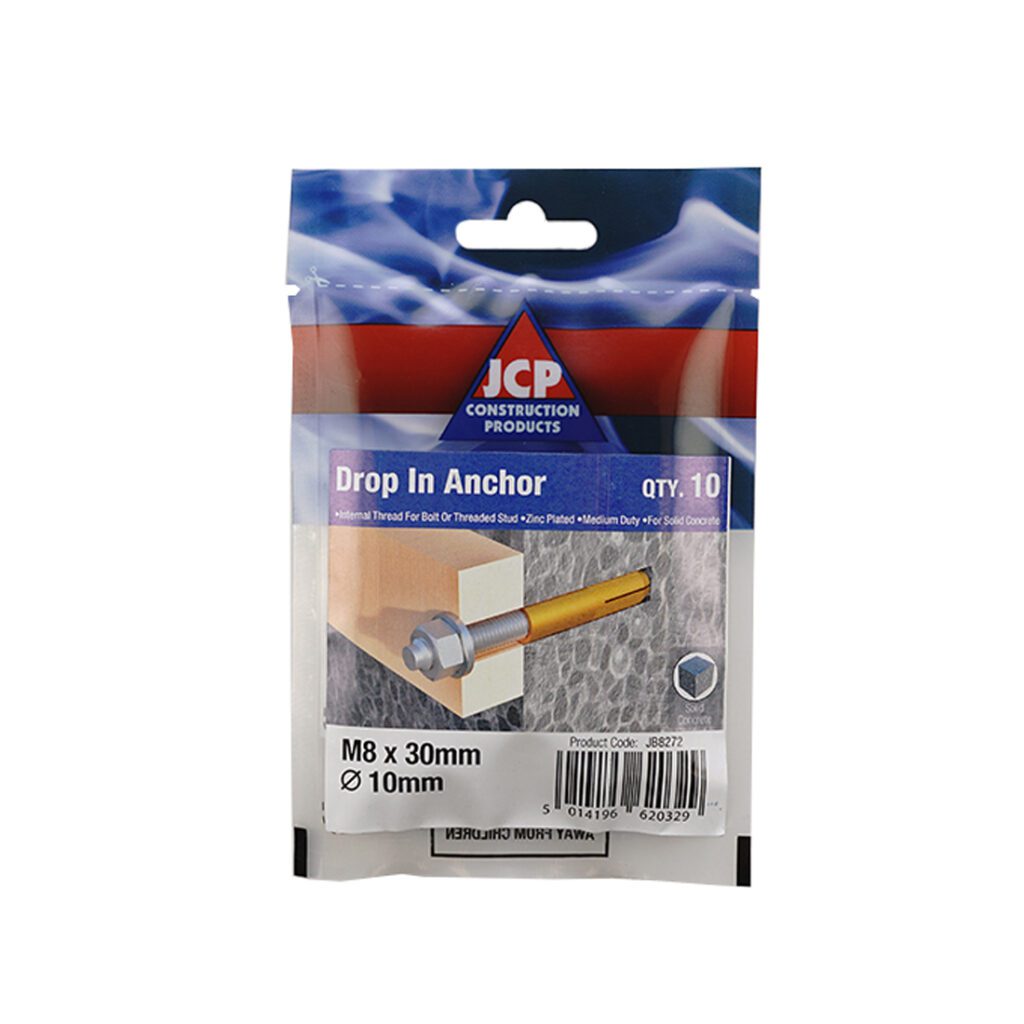

JB8272 M8 x 30mm
JB8275 M10 x 40mm

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through concrete using suitable hammer.

Hammer wedge home using correct setting punch.

Tighten with torque wrench to recommended torque.

>
