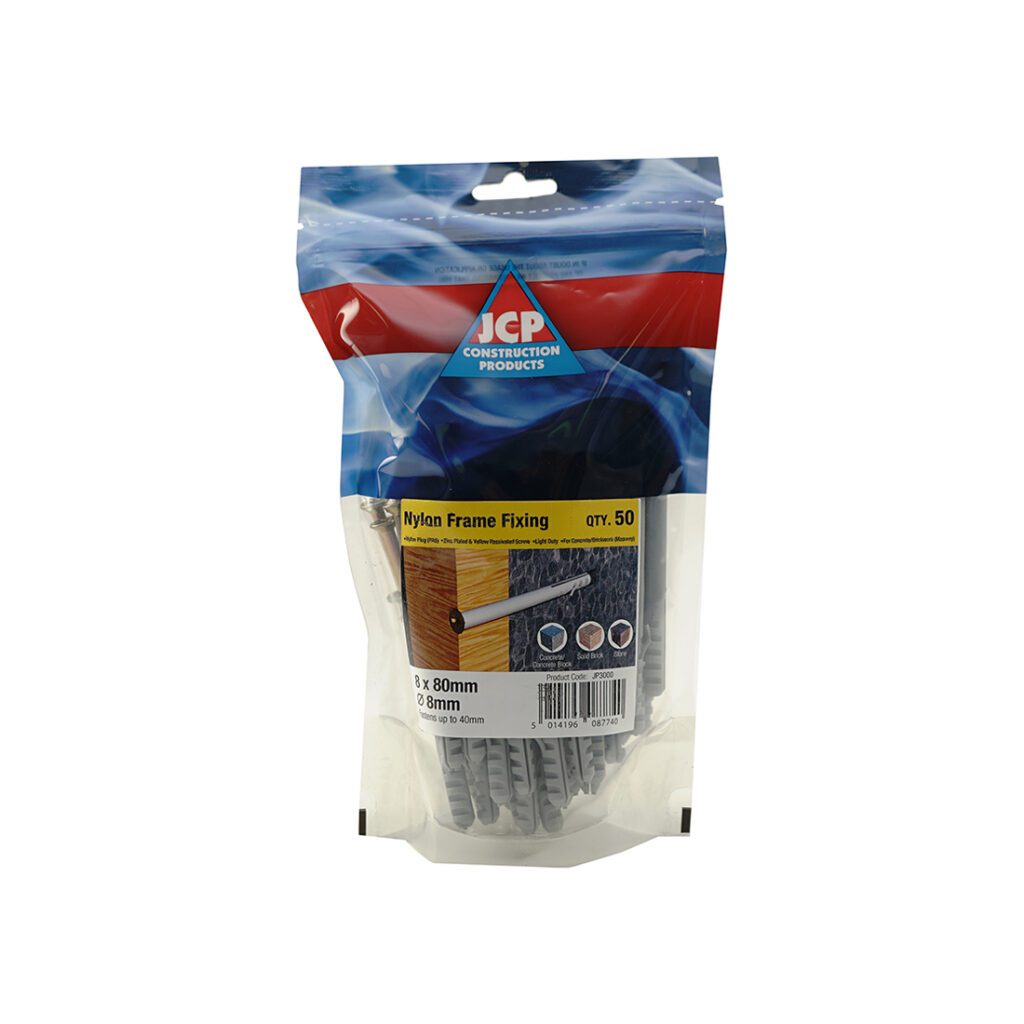

COUNTERSUNK NYLON FRAME FIXINGS ZYP

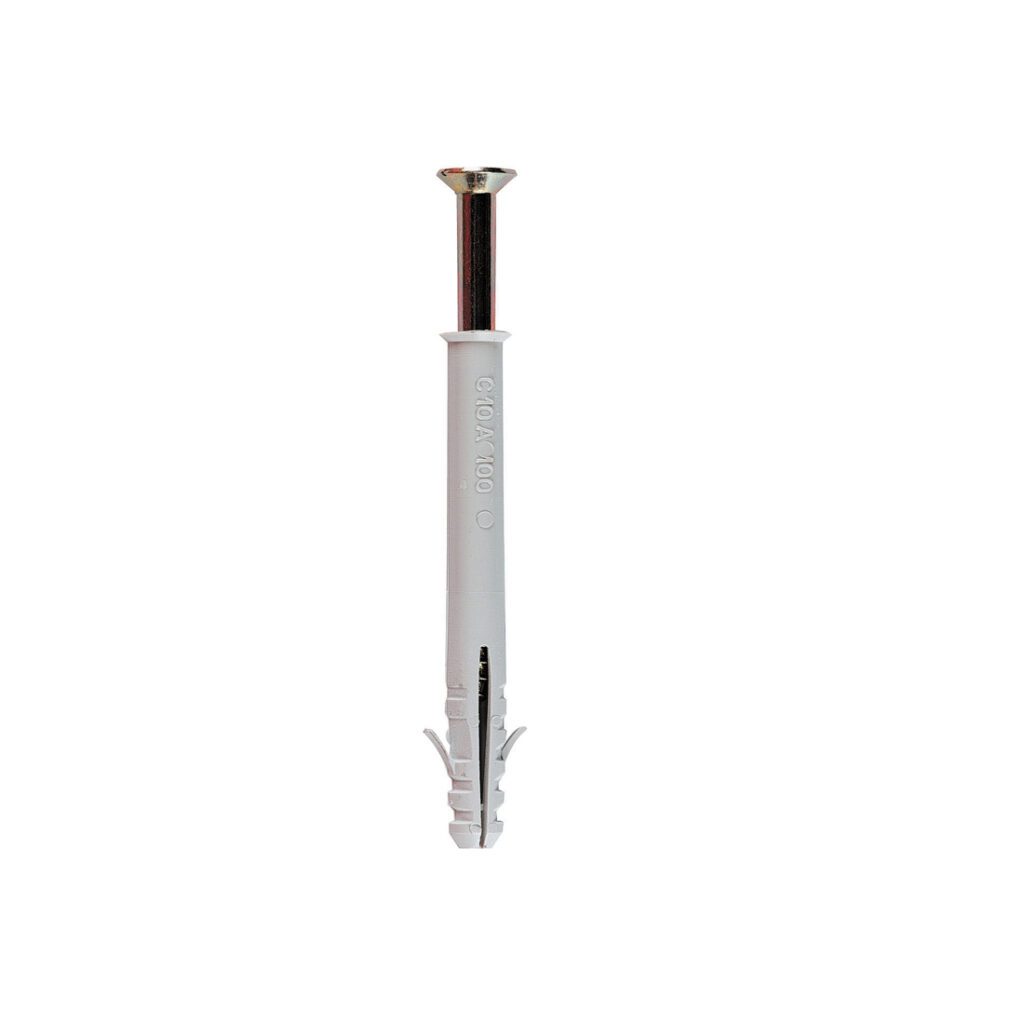

The nylon frame fixing has a countersunk screw. The frame anchor provides a matched screw and extended plug for anchoring timber to a wide variety of materials. A strong grip in weaker materials is achieved by the use of a high expansion ratio and heavy ribbing on the expander which digs into materials such as aerated concrete or lightweight aggregate blocks.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Through Fixing
COUNTERSUNK HEAD
HIGH-EXPANSION RATIO
STRONG GRIP IN WEAKER MATERIALS
RIBBED PLUG MANUFACTURED FROM POLYAMIDE PA6 NYLON

Product Information

Non-Cracked Concrete
Masonry

  • Timber Frames
  • Battens
  • Windows and Other Wooden Products to Concrete and Masonry

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JP3000 8mm x 80mm 8
JP3003 8mm x 100mm 8
JP3006 10mm x 100mm 10
JP3009 10mm x 120mm 10
JP3012 10mm x 140mm 10
JP3015 10mm x 160mm 10

Installation Instructions

Drill correct diameter hole through fixture to correct depth in base material.

Clean hole by brushing and blowing.

Insert frame fixing through fixture into base material and tighten screw.

>
