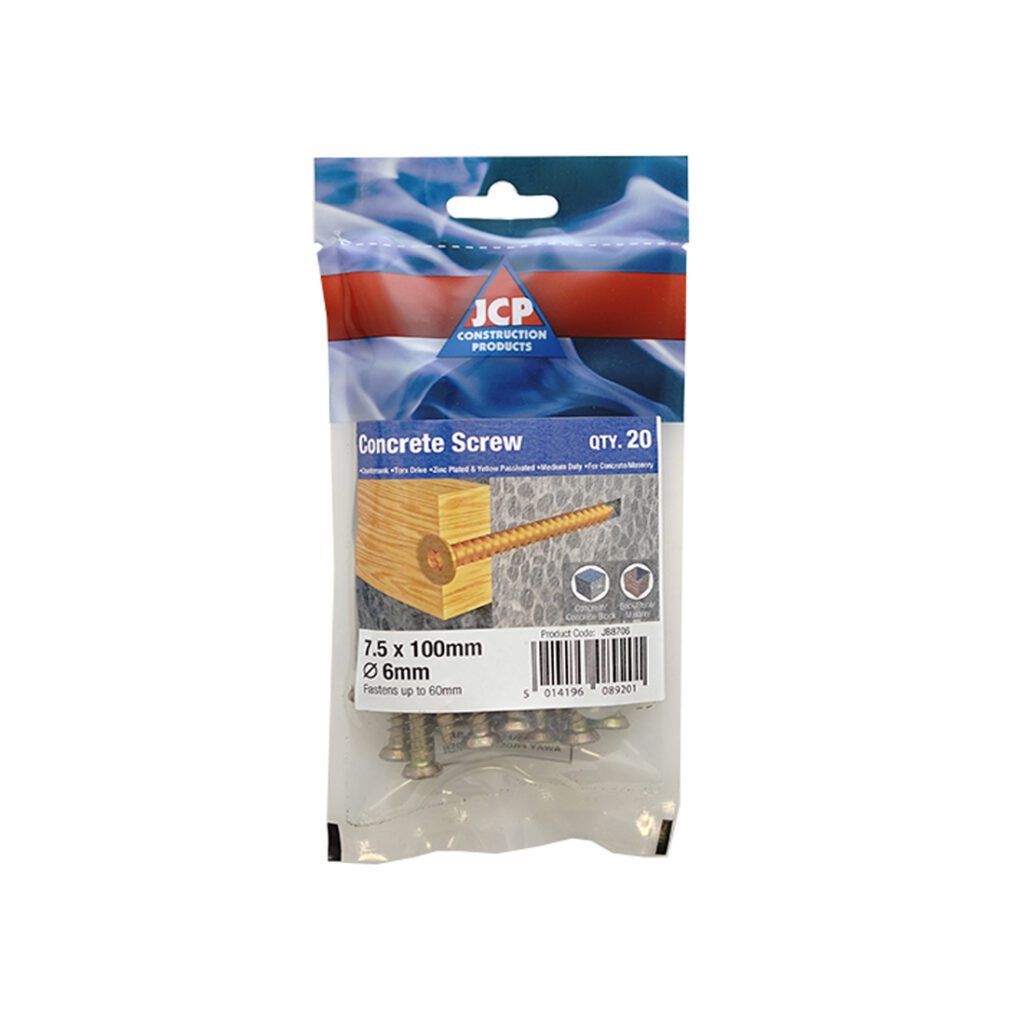

COUNTERSUNK HEAD CONCRETE SCREWS ZYP

A countersunk self-tapping screw, zinc plated and yellow passivated, suitable for use in concrete, concrete blocks and masonry.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Undercutting Action
Fast and Secure Installation
Expansion Free
Good Performance
Reaction to Fire Class A1
Zinc Plated Minimum 5µm
Locking Ribs Under Head

Data SheetData Sheet

Product Information

Solid Concrete
Concrete Blocks
Solid Brickwork
Natural Stone
Hollow Base Materials

  • Fixing Back Windows
  • Door Frames
  • Timber Construction

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size
Drill Diameter mm
JB8700 7.5mm x 60mm 6
JB8703 7.5mm x 80mm 6
JB8706 7.5mm x 100mm 6
JB8709 7.5mm x 120mm 6
JB8712 7.5mm x 150mm 6

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert screw through fixture into base material and screw down.

>
